Removal and Replacement
Rear Assemblies
Upper Output Roller Assembly
●
1. Remove the Printer Cover.
2. Using a flat-blade screwdriver, release the two-sided tabs from
each end of the Roller Assembly (Figure 6-34).
9
3. Lift the Upper Output Roller Assembly out to remove.
CAUTION
Be carefid not to lift one end of the shaft more
than about 1/2 inch (1 cm) before both ends have
been released, as this will break the shaft.

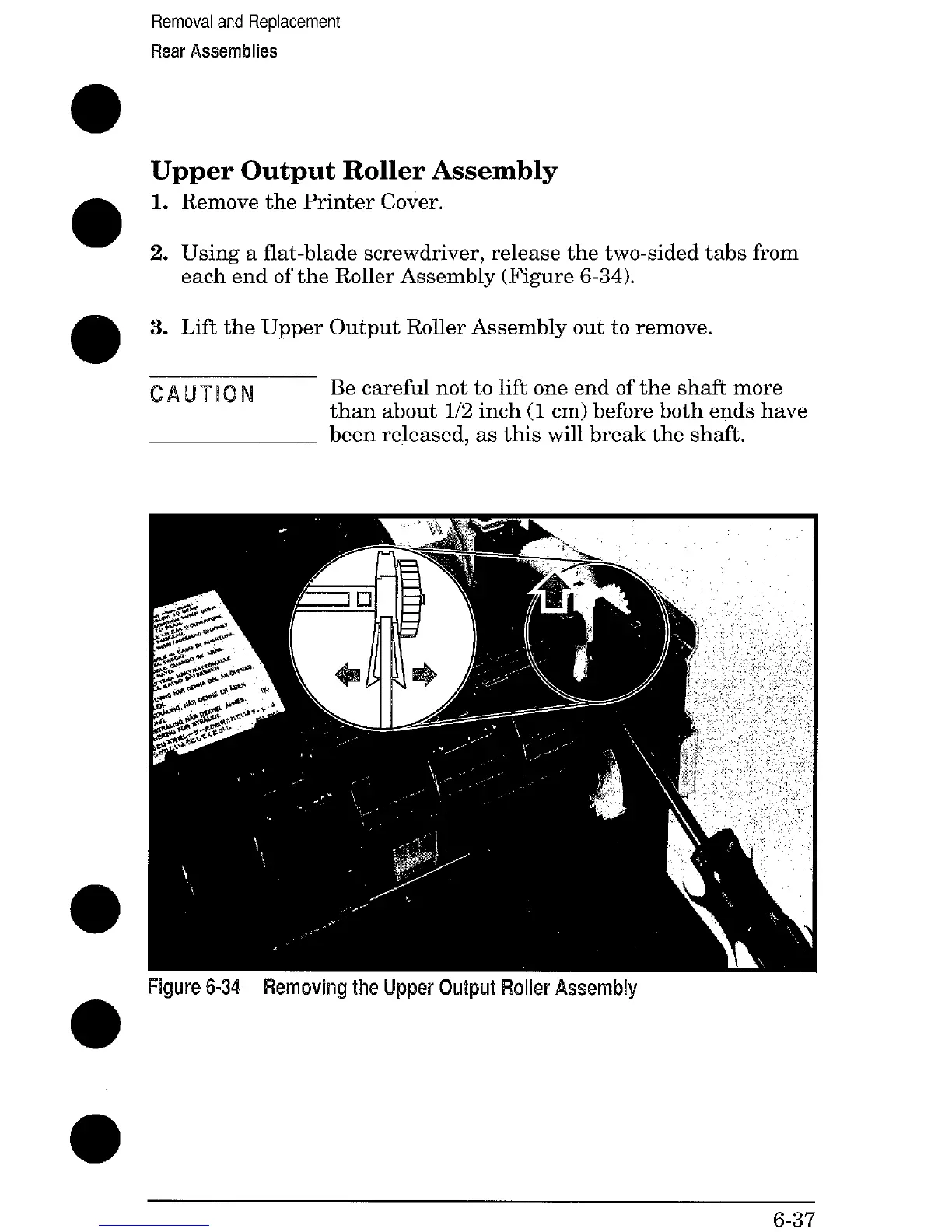

Figure 6-34 Removing the Upper Output Roller Assembly
●
6-37
