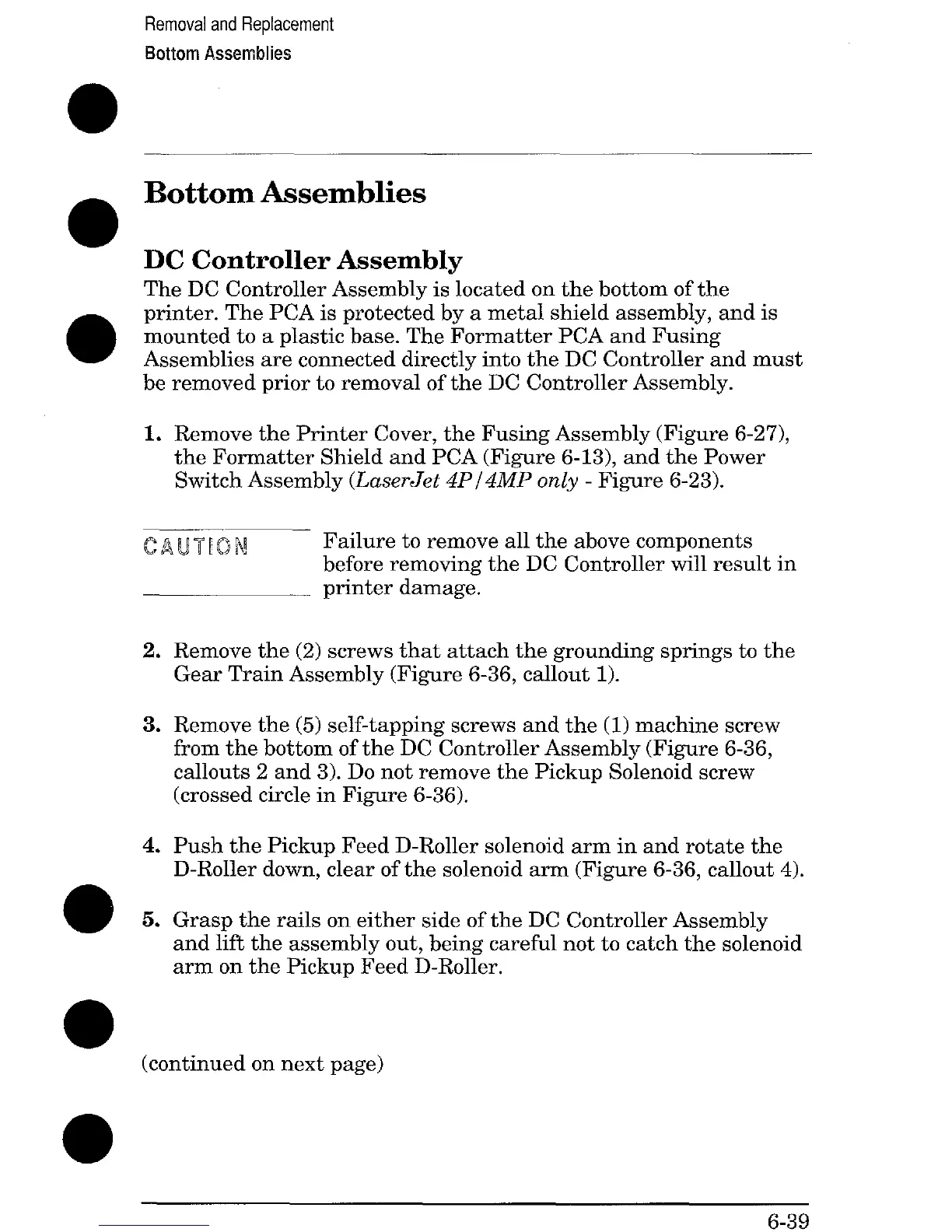

Removal and Replacement
Bottom Assemblies
Bottom Assemblies
DC Controller Assembly
The DC Controller Assembly is located on the bottom of the
printer. The PCA is protected by a metal shield assembly, and is
mounted to a plastic base. The Formatter PCA and Fusing
Assemblies are connected directly into the DC Controller and must
be removed prior to removal of the DC Controller Assembly.
1. Remove the Printer Cover, the Fusing Assembly (Figure 6-27),
the Formatter Shield and PCA (Figure 6-13), and the Power
Switch Assembly (LaserJet 4P14ikTP only - Figure 6-23).
Cliu-r[ah!
Failure to remove all the above components
before removing the DC Controller will result in
printer damage.
2.
3.
4.
5.
Remove the (2) screws that attach the grounding springs to the
Gear Train Assembly (Figure 6-36, callout 1).
Remove the (5) self-tapping screws and the (1) machine screw
from the bottom of the DC Controller Assembly (Figure 6-36,
callouts 2 and 3). Do not remove the Pickup Solenoid screw
(crossed circle in Figure 6-36).
Push the Pickup Feed D-Roller solenoid arm in and rotate the
D-Roller down, clear of the solenoid arm (Figure 6-36, callout 4).
Gras~ the rails on either side of the DC Controller Assemblv
and fift the assembly out, being careful not to catch the sol&oid
arm on the Pickup Feed D-Roller.
(continued on next page)
