Removal and Replacement
Bottom Assemblies

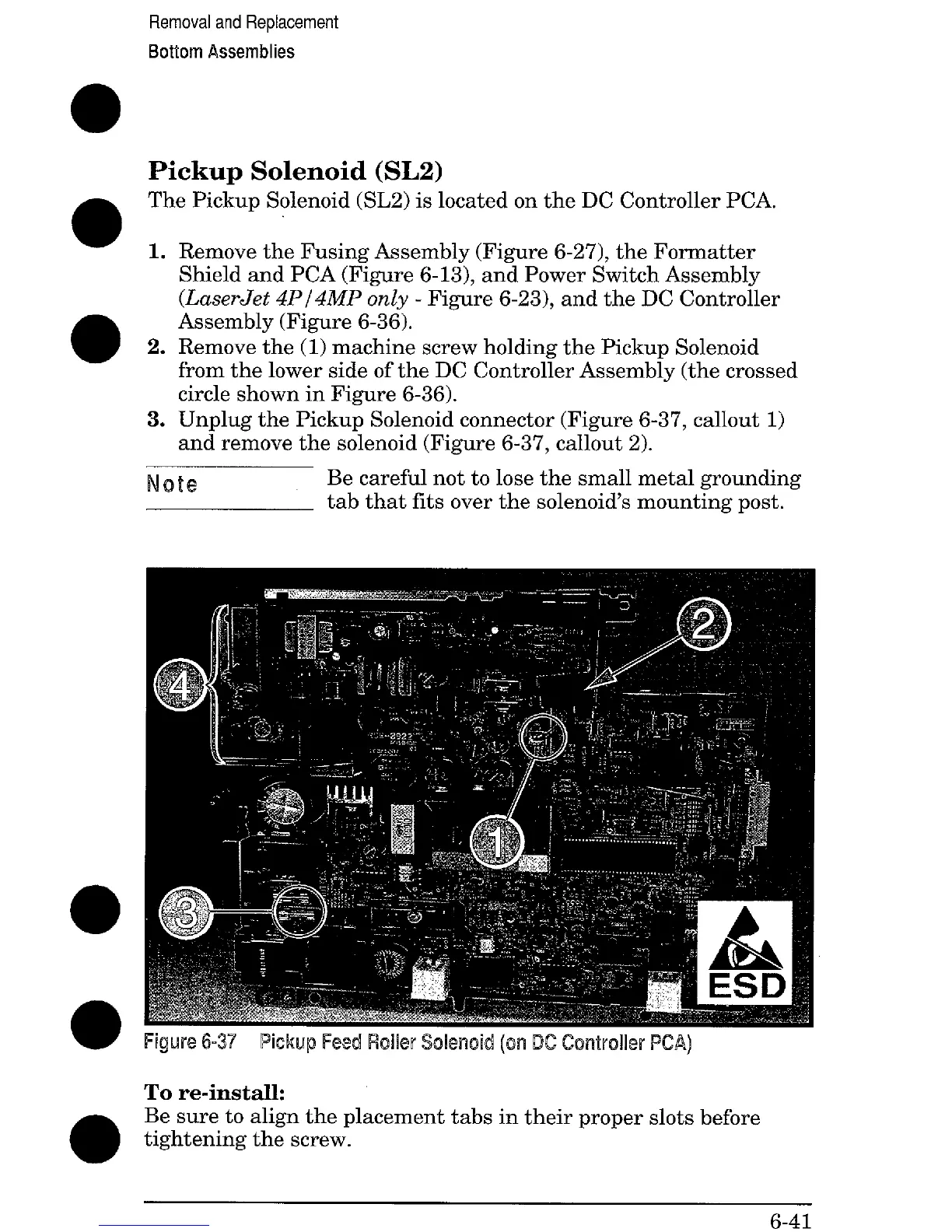

Pickup Solenoid (SL2)
●
The Pickup Solenoid (SL2) is located on the DC Controller PCA,
1. Remove the Fusing Assembly (Figure 6-27), the Formatter
Shield and PCA (Fiare 6-13), and Power Switch Assembly
(LaserJet 4P/4iWP &ly - Fig-&e 6-23), and the DC Contro~ler
●
Assembly (Figure 6-36).
2. Remove the (1) machine screw holding the Pickup Solenoid
from the lower side of the DC Controller Assembly (the crossed
circle shown in Figure 6-36).
3. Unplug the Pickup Solenoid connector (Figure 6-37, callout 1)
and remove the solenoid (Figure 6-37, callout 2).
Note
Be careful not to lose the small metal grounding
tab that fits over the solenoid’s mounting post.
6-41
