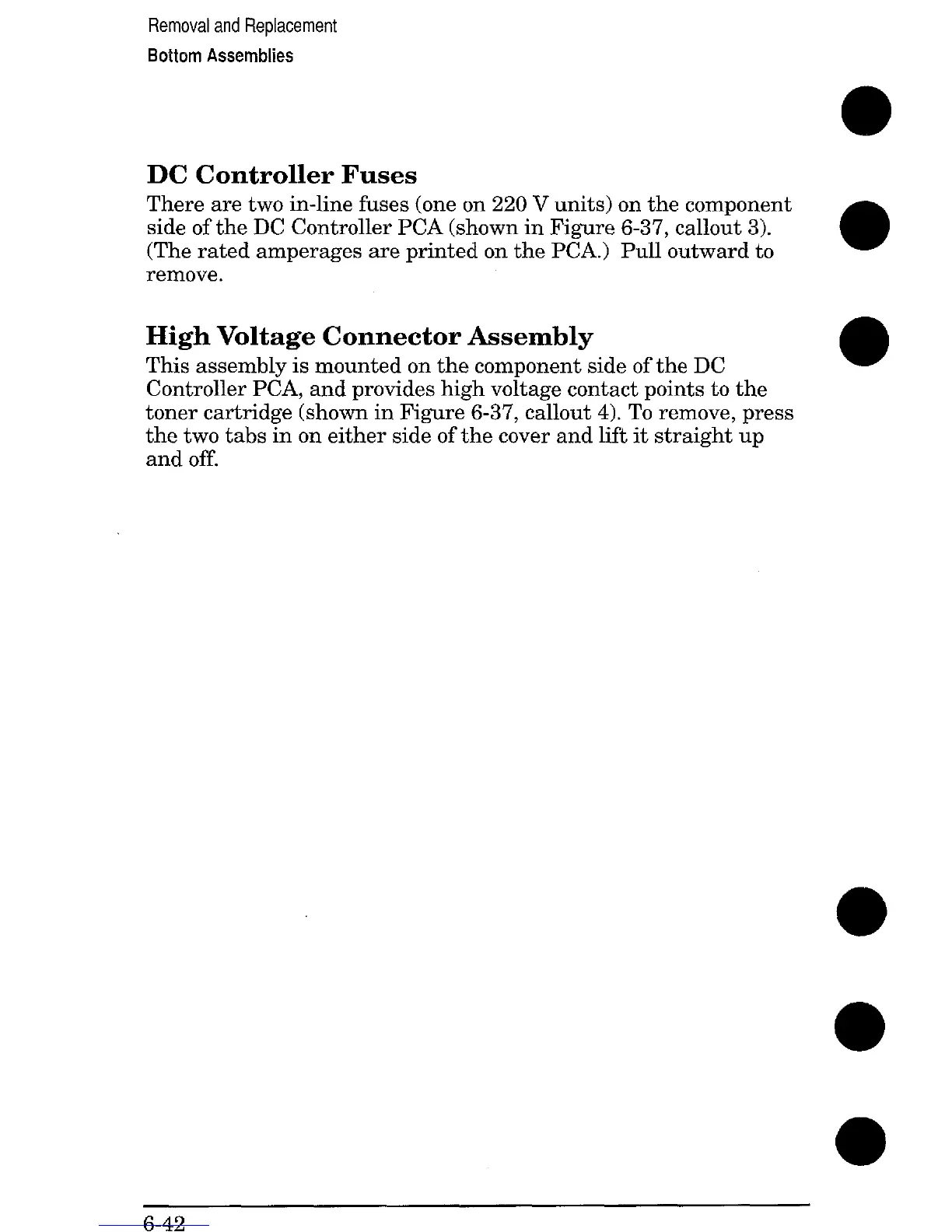

Removal and Replacement
Bottom Assemblies
e
DC Controller Fuses
There are two in-line fuses (one on 220 V units) on the component
side of the DC Controller PCA (shown in Figure 6-37, callout 3).
(The rated amperages are printed on the PCA.) Pull outward to
●
remove.
High Voltage Connector Assembly
This assembly is mounted on the component side of the DC
●
Controller PCA, and provides high voltage contact points to the
toner cartridge (shown in Figure 6-37, callout 4). To remove, press
the two tabs in on either side of the cover and lift it straight up
and off.
6-42
