6. Hold up the top cover and release one alignment pin (callout 5) on the left side of the printer by
pushing the pin to one side.

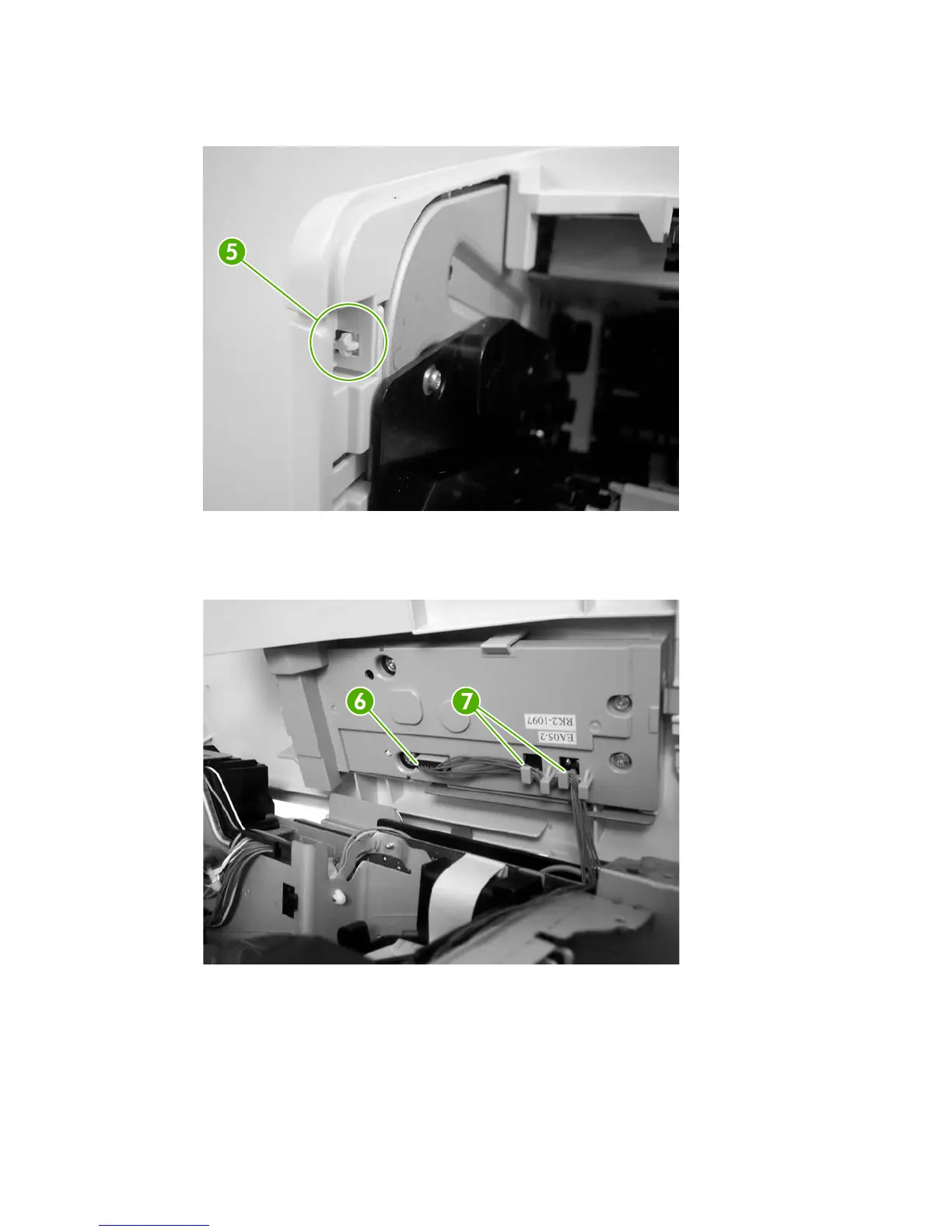

Figure 5-48 Removing the top cover (4 of 5)
7. Gently lift up the left side of the top cover to disconnect one cable connector (callout 6) and release
the cable from the guides (callout 7).
Figure 5-49 Removing the top cover (5 of 5)
8. Remove the top cover.
ENWW External doors, covers, and panels 91
