Left cover
1. Remove the following components:
●
Right cover. See
Right cover on page 86.
●
Lower back cover or duplexer. See
Lower back cover on page 86 or Duplexer on page 84.
●
Face-up bin. See
Face-up bin on page 87.
●
Top cover. See
Top cover on page 89.
NOTE Remove tray 3 if one is installed.
CAUTION Unhook claws in the correct order.
2. Unhook one claw (callout 1).

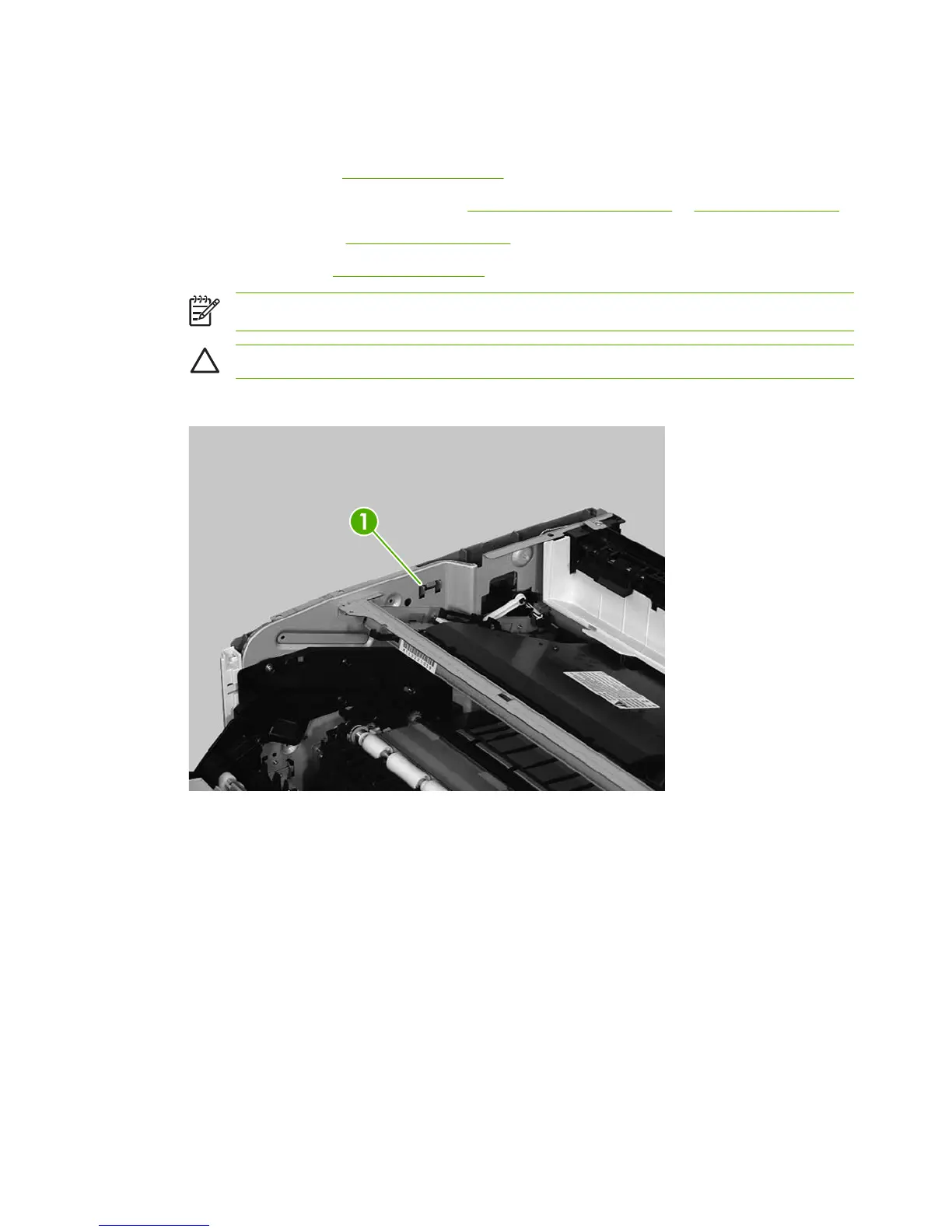

Figure 5-50 Removing the left cover (1 of 5)
