Face-down delivery unit
1. Remove the following components:
●
Right cover. See
Right cover on page 86.
●
Formatter. See
Formatter on page 76.
●
Lower back cover or duplexer. See
Lower back cover on page 86 or Duplexer on page 84.
●
Face-up bin. See
Face-up bin on page 87.
●
Fuser. See
Fuser on page 112.
●
Top cover. See
Top cover on page 89.
●
Face-down cover. See
Face-down cover on page 95.
●
DC controller cover. See
DC controller cover on page 100.

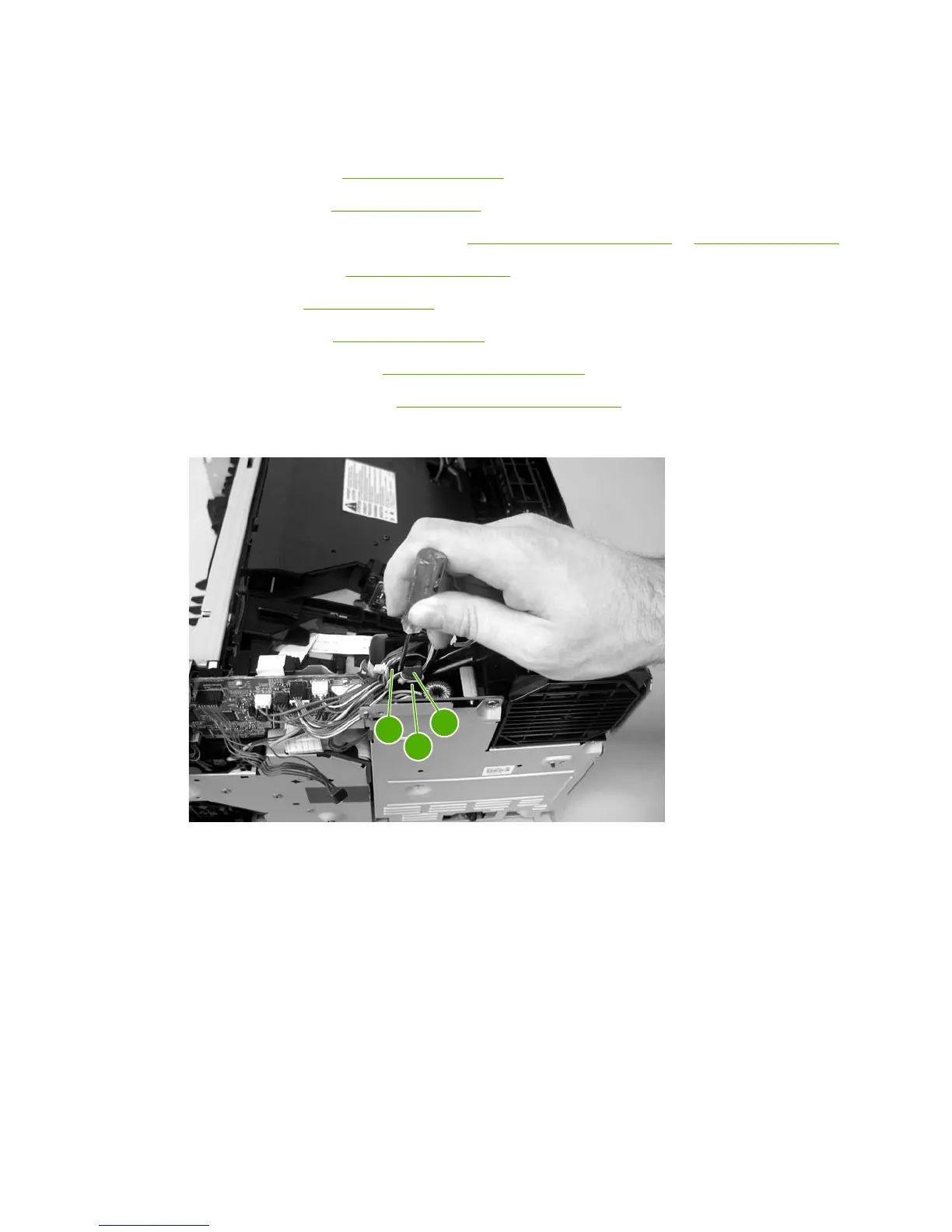

2. Release the tab (callout 1) and release the ferrite block (callout 2) from the plastic holder (callout 3).
1
2
3
Figure 5-93 Removing the face-down delivery unit (1 of 4)
118 Chapter 5 Removal and replacement ENWW
