2. Remove one screw (callout 1) and one plate (callout 2).
2
1

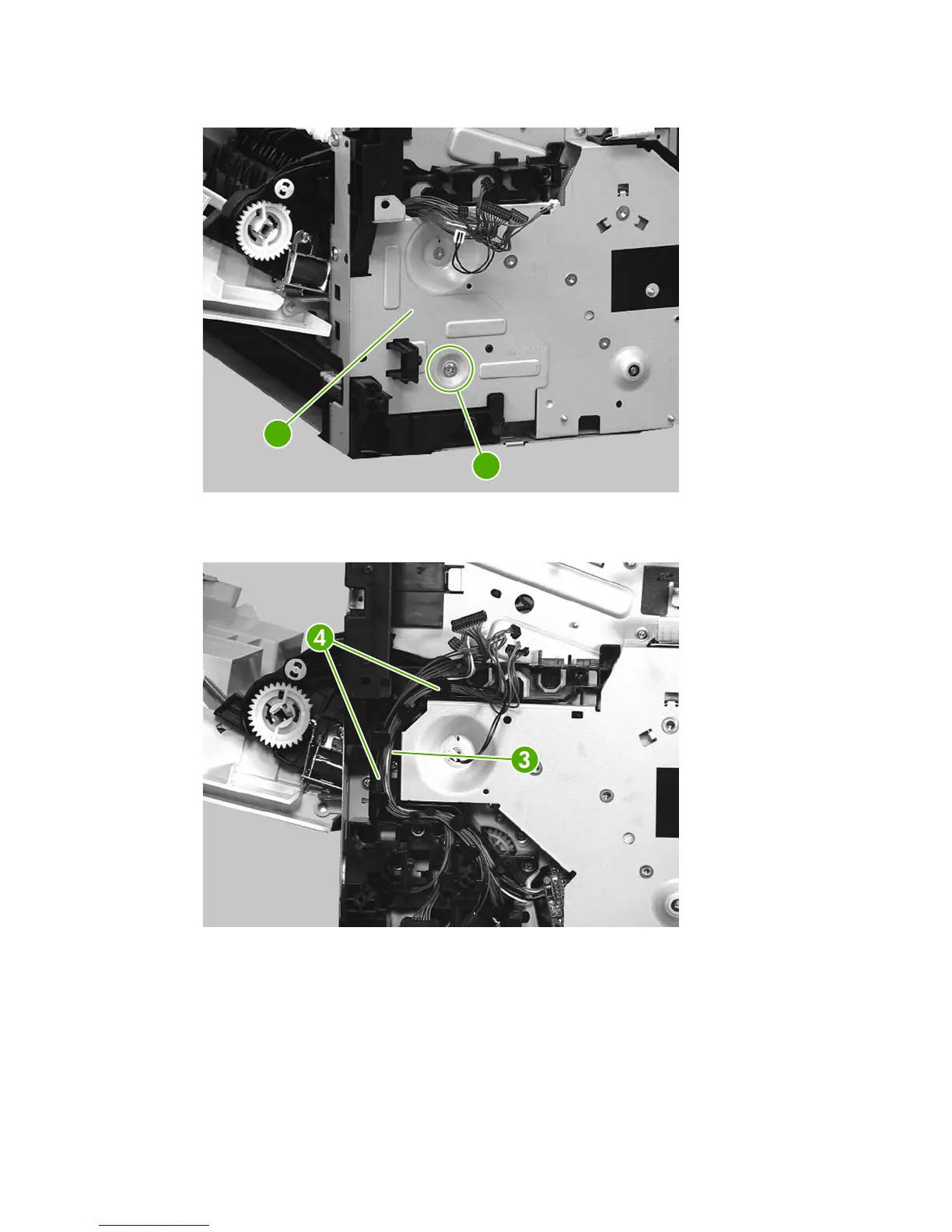

Figure 5-97 Removing the main motor (1 of 9)
3. Release the cables (callout 3) from the cable guide (callout 4).
Figure 5-98 Removing the main motor (2 of 9)
4. Unhook two claws (callout 5).
ENWW Internal assemblies 121
