HP LaserJet 5200

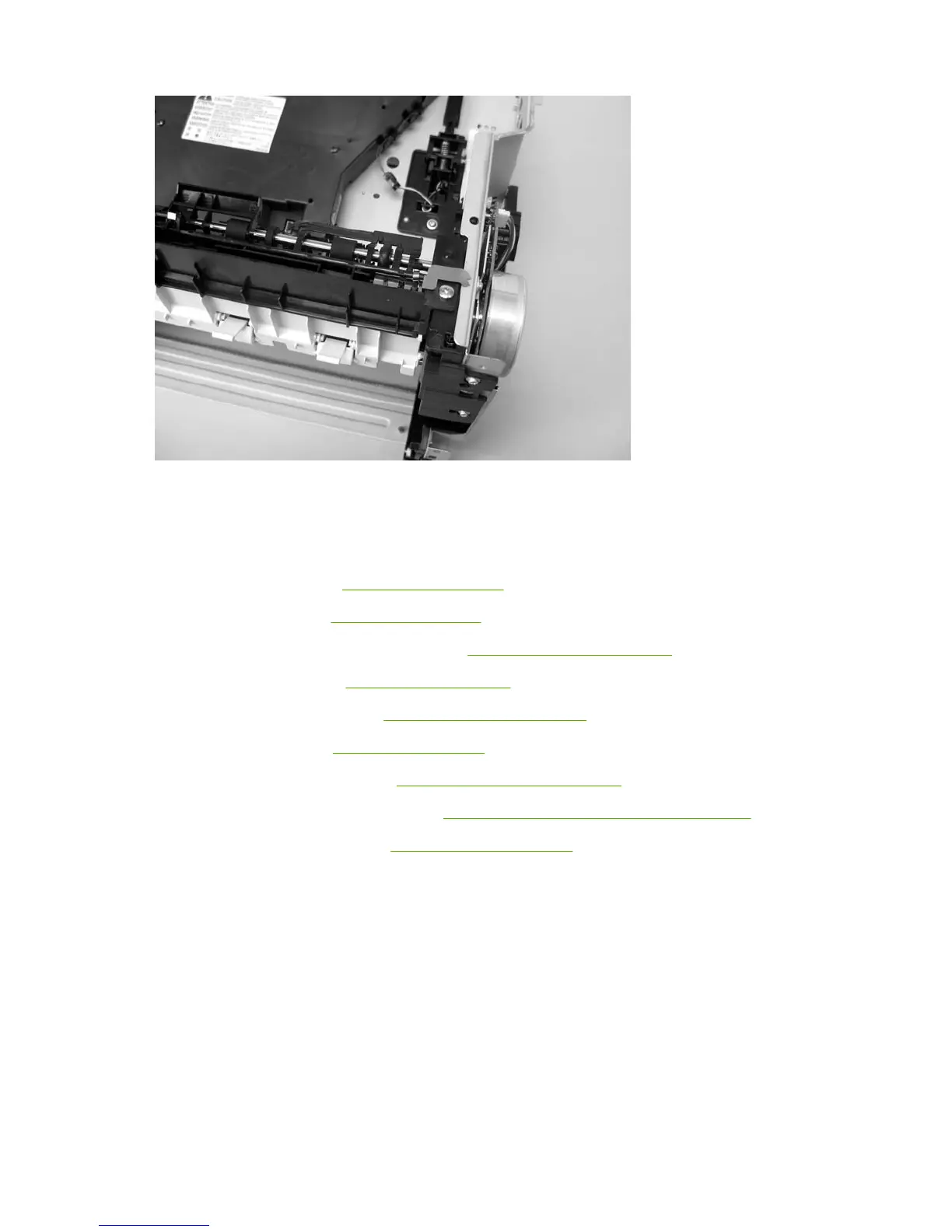

Figure 5-96 Removing the face-down delivery unit (4 of 4)
Main motor
1. Remove the following components:
●
Right cover. See
Right cover on page 86.
●
Formatter. See
Formatter on page 76.
●
Lower back cover or duplexer. See
Lower back cover on page 86.
●
Face-up bin. See
Face-up bin on page 87
●
Right lower cover. See
Right lower cover on page 97.
●
Top cover. See
Top cover on page 89.
●
DC controller cover. See DC controller cover on page 100.
●
Low-voltage power supply. See
Low-voltage power supply PCA on page 151.
●
DC controller PCA. See
DC controller on page 139.
120 Chapter 5 Removal and replacement ENWW
