HP LaserJet 5200

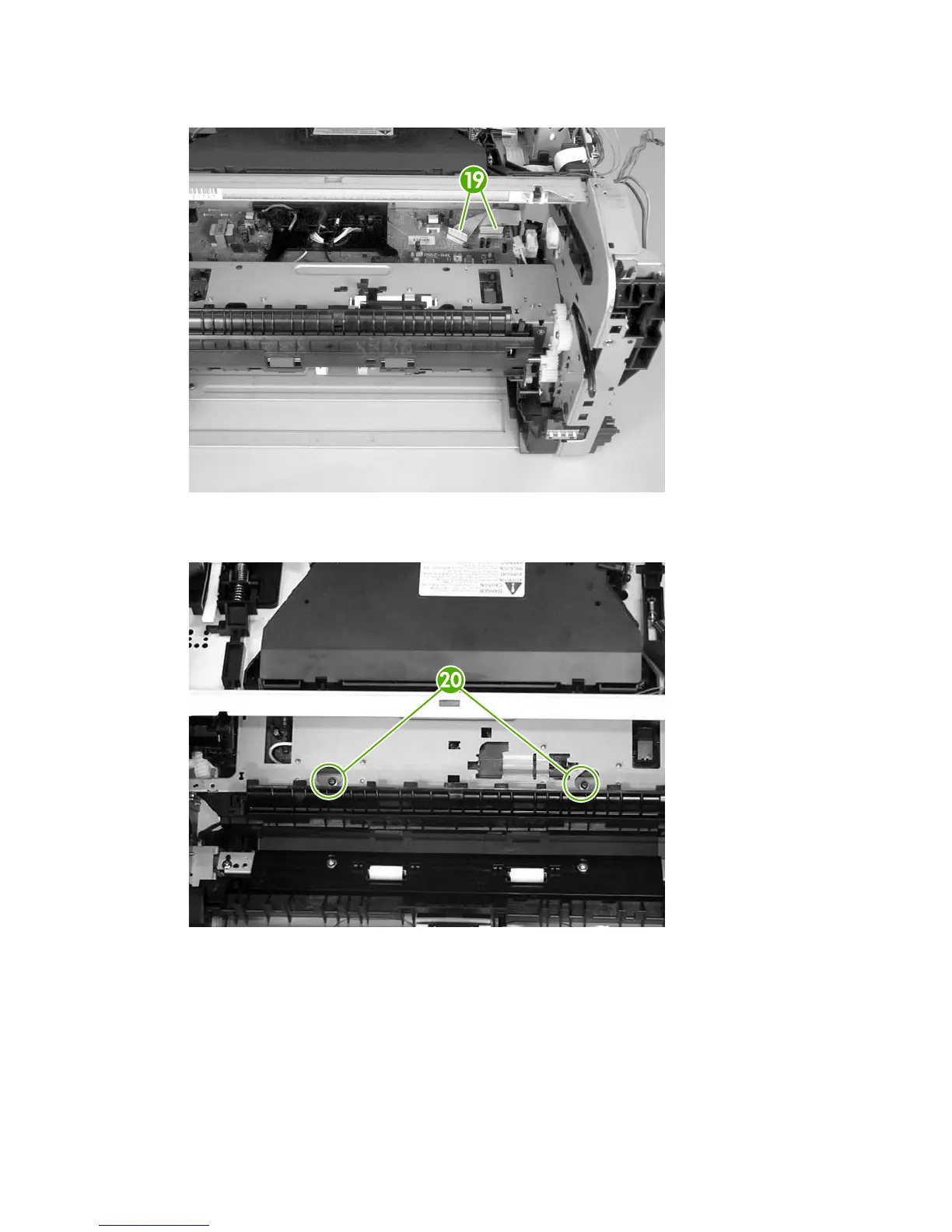

13. Disconnect two flat flexible cables (callout 19) from the high-voltage power supply.
Figure 5-143 Removing the high-voltage power supply (12 of 17)
14. Remove two screws (callout 20) at the top of the printer.
Figure 5-144 Removing the high-voltage power supply (13 of 17)
148 Chapter 5 Removal and replacement ENWW
