HP LaserJet 5200

15. Remove two screws (callout 21) at the back of the printer.

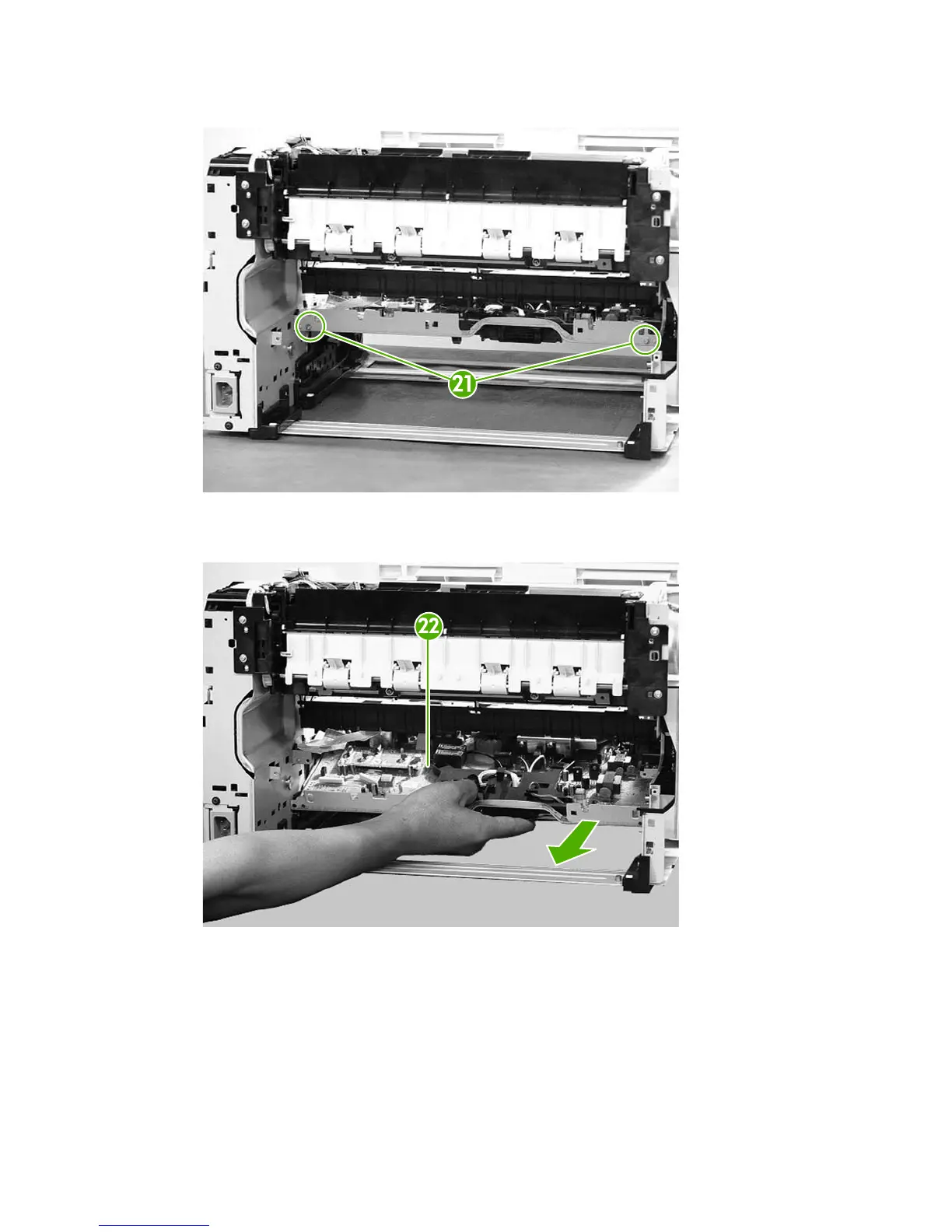

Figure 5-145 Removing the high-voltage power supply (14 of 17)
16. Pull the high-voltage power supply (callout 22) toward you slightly and tilt it down to remove it.
Figure 5-146 Removing the high-voltage power supply (15 of 17)
ENWW Printed circuit assemblies (PCAs) 149
