HP LaserJet 5200 - Page 207

3. Unhook one spring (callout 1) from the metal hook.

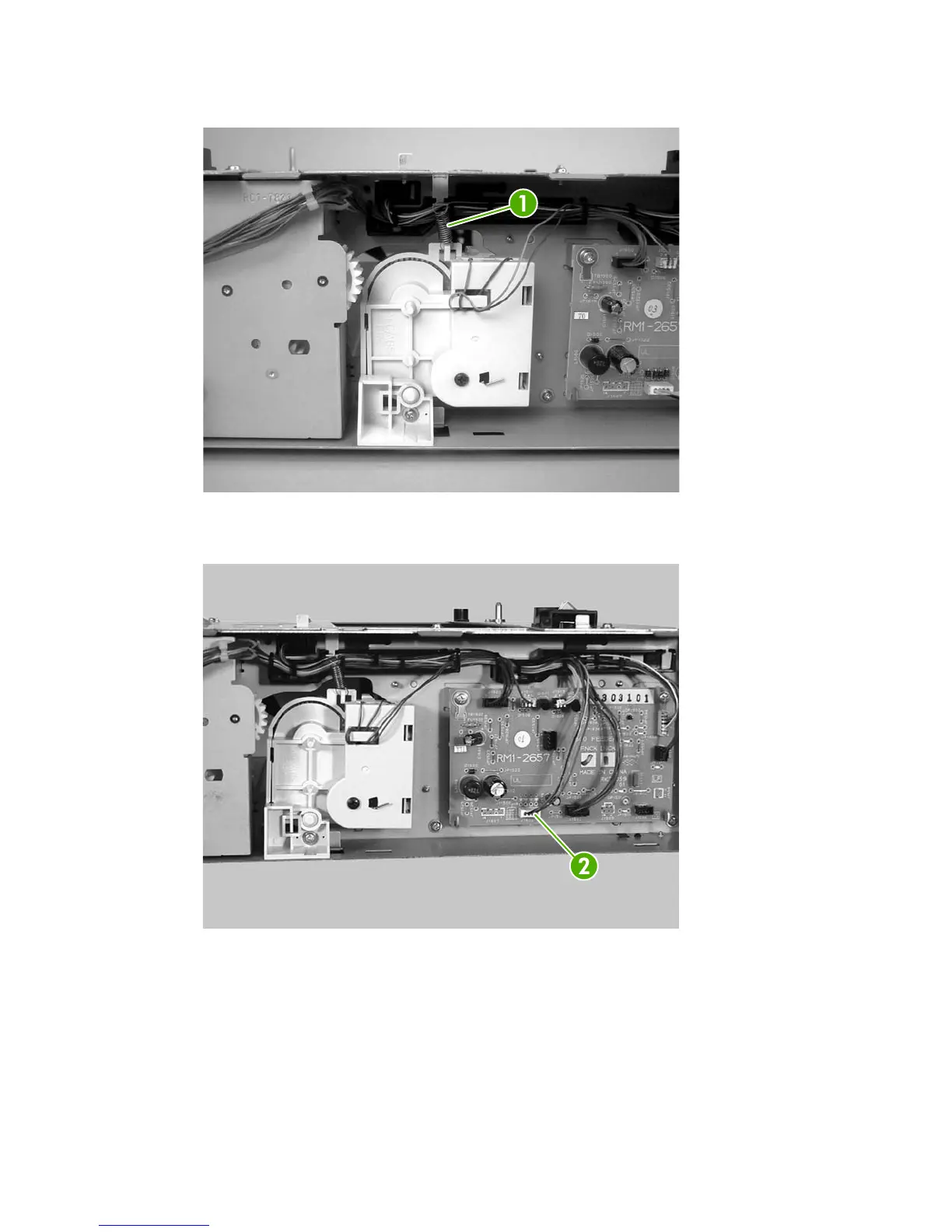

Figure 5-207 Removing the 500-sheet feeder pickup motor (1 of 4)
4. Disconnect one connector (callout 2).
Figure 5-208 Removing the 500-sheet feeder pickup motor (2 of 4)
ENWW 500-sheet feeder 187
