5. Release the cable (callout 3) from the cable guides (callout 4).

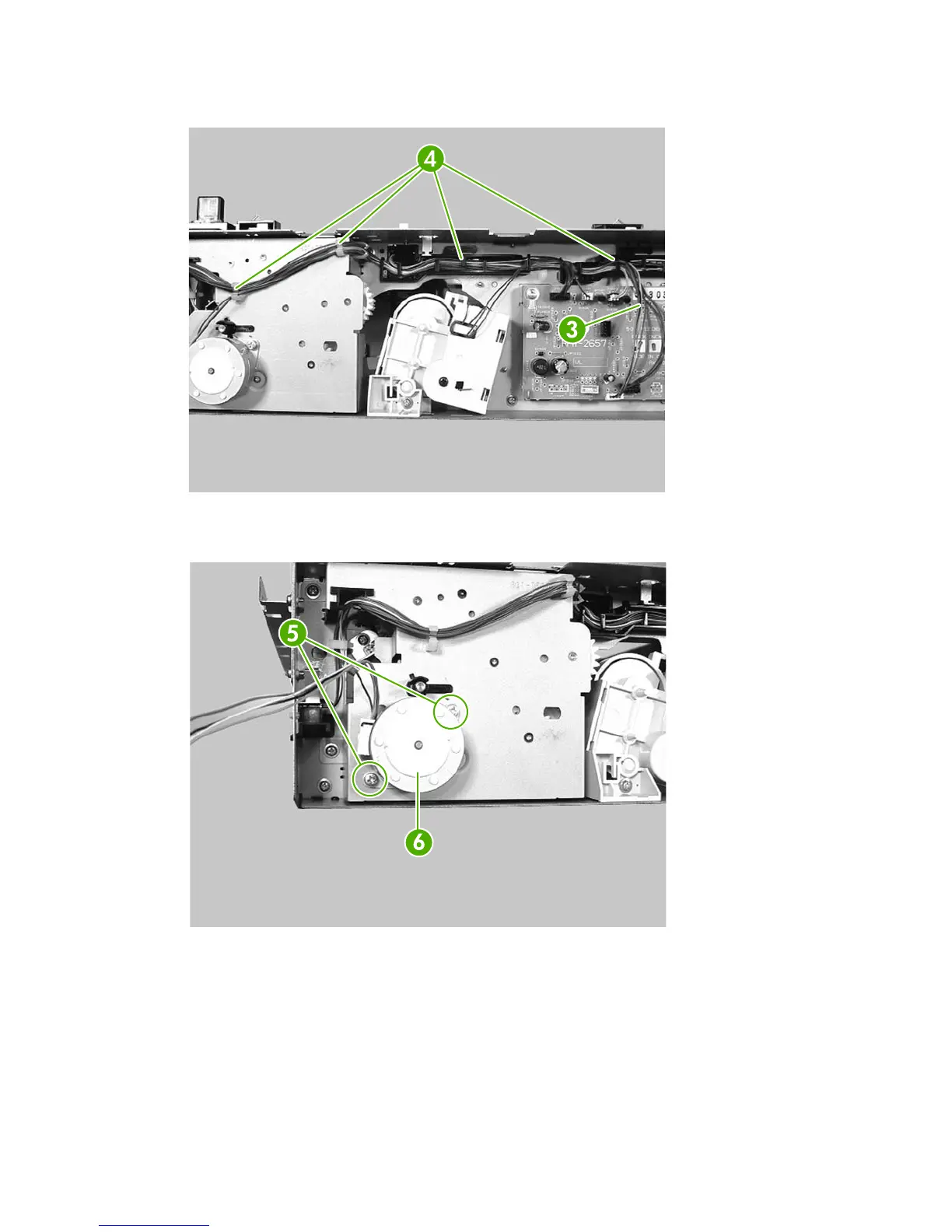

Figure 5-209 Removing the 500-sheet feeder pickup motor (3 of 4)
6. Remove two screws (callout 5), and then remove the feeder pickup motor (callout 6).
Figure 5-210 Removing the 500-sheet feeder pickup motor (4 of 4)
188 Chapter 5 Removal and replacement ENWW
