4. To remove the feed roller (callout 2), pinch the white tab and slide the feed roller to the left to remove
it.
1
2

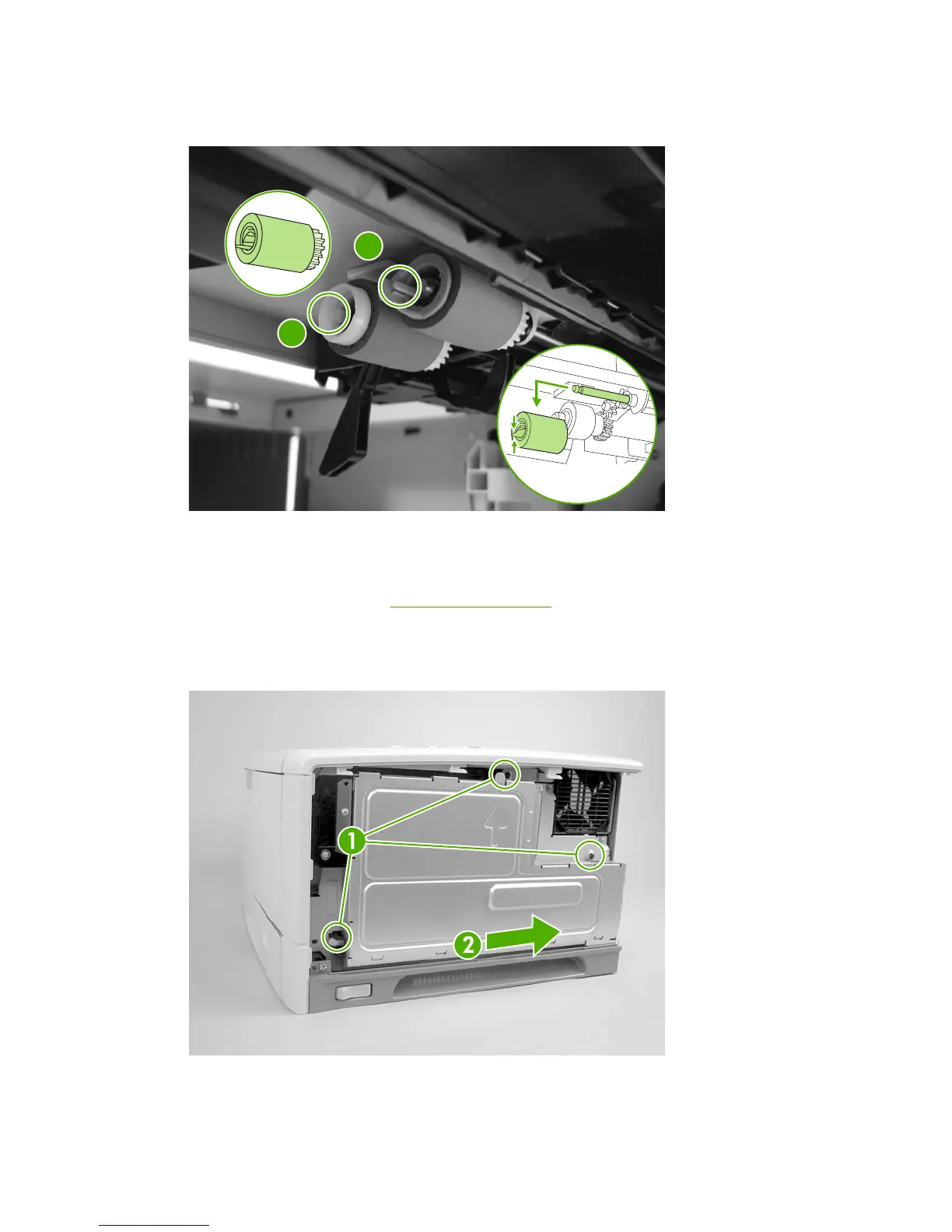

Figure 5-14 Removing the tray 3 pickup and feed rollers (2 of 2)
Formatter
1. Remove the right cover. See Right cover on page 86.
2. Remove three screws (callout 1).
3. Slide the formatter (callout 2) toward the back of the printer and remove it.
Figure 5-15 Removing the formatter
76 Chapter 5 Removal and replacement ENWW
