6 Turn the Feed Assembly over and place it in one hand with the roller-side down.
Pop one of the tabs on the other side and the feed roller should fall into your hand

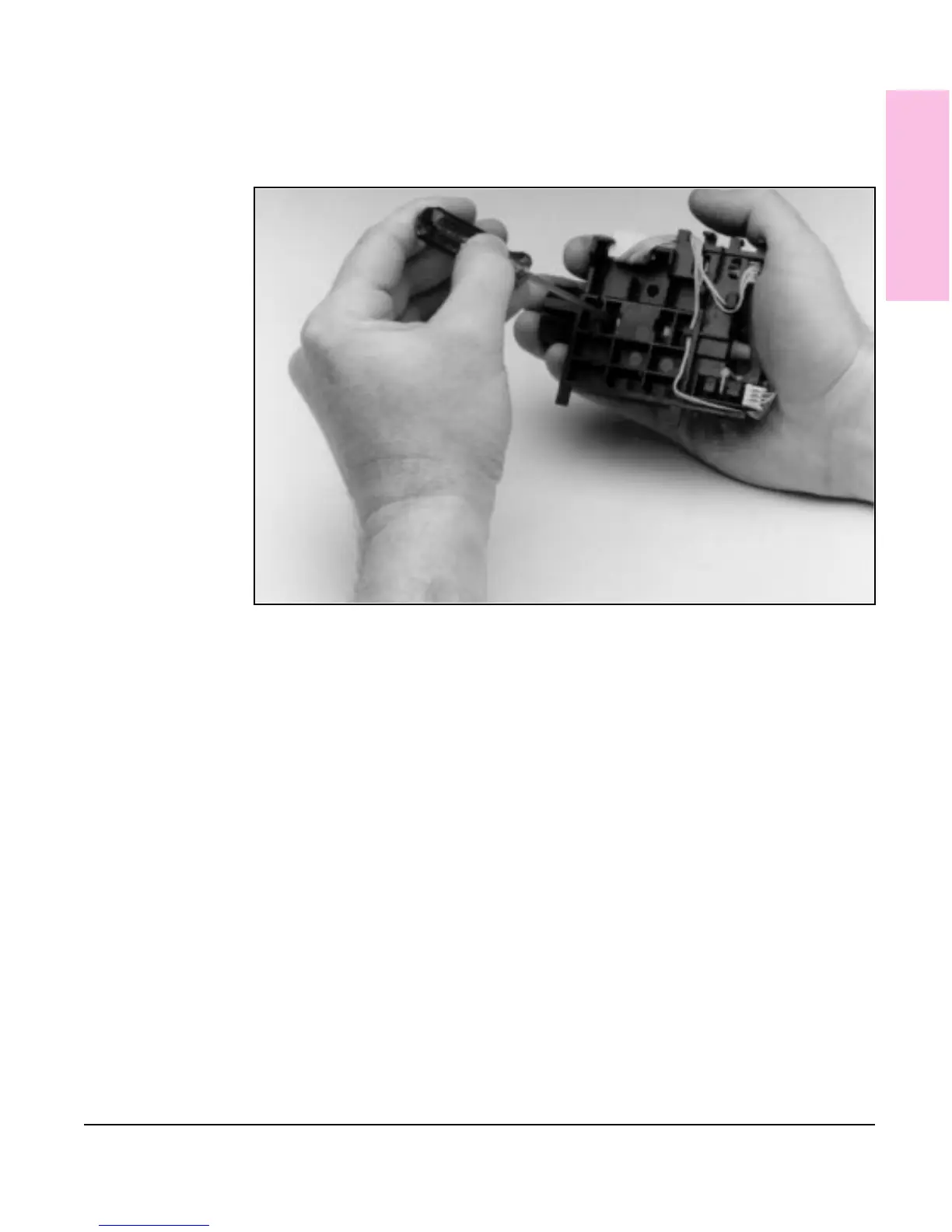

(Figure 6-37).
Feed Assembly Removal (3 of 3)
To reinstall
Before securing the screw, ensure the tabs on the Feed Assembly are positioned in
their slots on the Paper Feed Frame (Figure 6-35, callout 2). Failure to do so will
cause paper feed problems.
Figure 6-37
6
Removal and
Replacement
Removal and Replacement 6 - 41
