Required Tools
• #2 Phillips screwdriver with a magnetic tip
• 5.5 mm hexhead nutdriver
• small flathead screwdriver
• needlenose pliers
Caution
A Posidriv screwdriver will damage the printer’s screw heads. Use Phillips only.

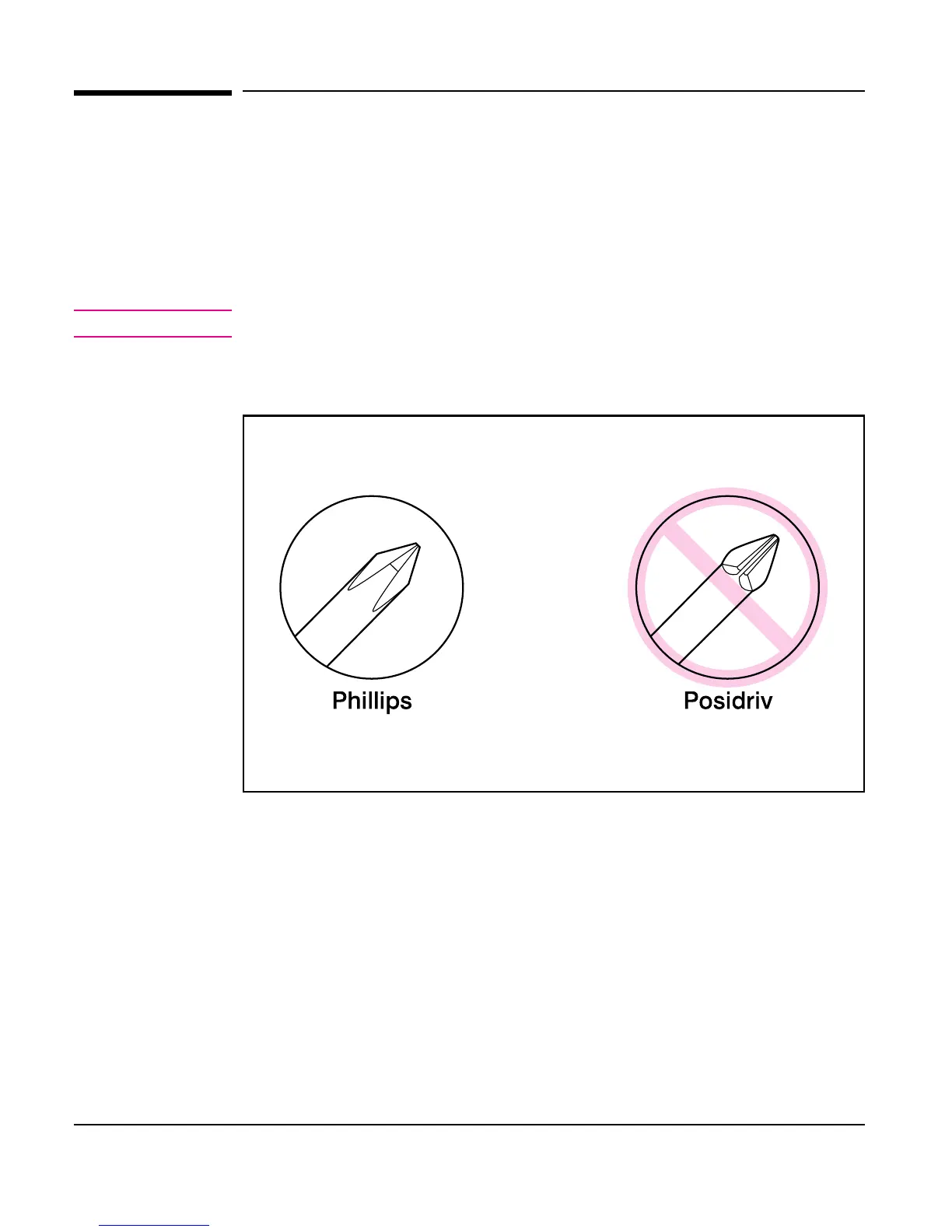

Figure 6-1 shows the difference between a Phillips and a Posidriv screwdriver. Note
that a Phillips tip has more beveled surfaces.
Phillips and Posidriv screwdrivers
Figure 6-1
6 - 4 Removal and Replacement
