Top Assemblies
Laser/Scanner Assembly
1 Remove the Printer Covers.
2 Remove both Laser/Scanner connectors (Figure 6-20, callout 1).
3 Remove all (4) screws and lift the assembly straight off (Figure 6-20, callout 2).
Note
One of the four screws is longer than the other three. Upon reinstallation, the longer
screw must be replaced in its original location.

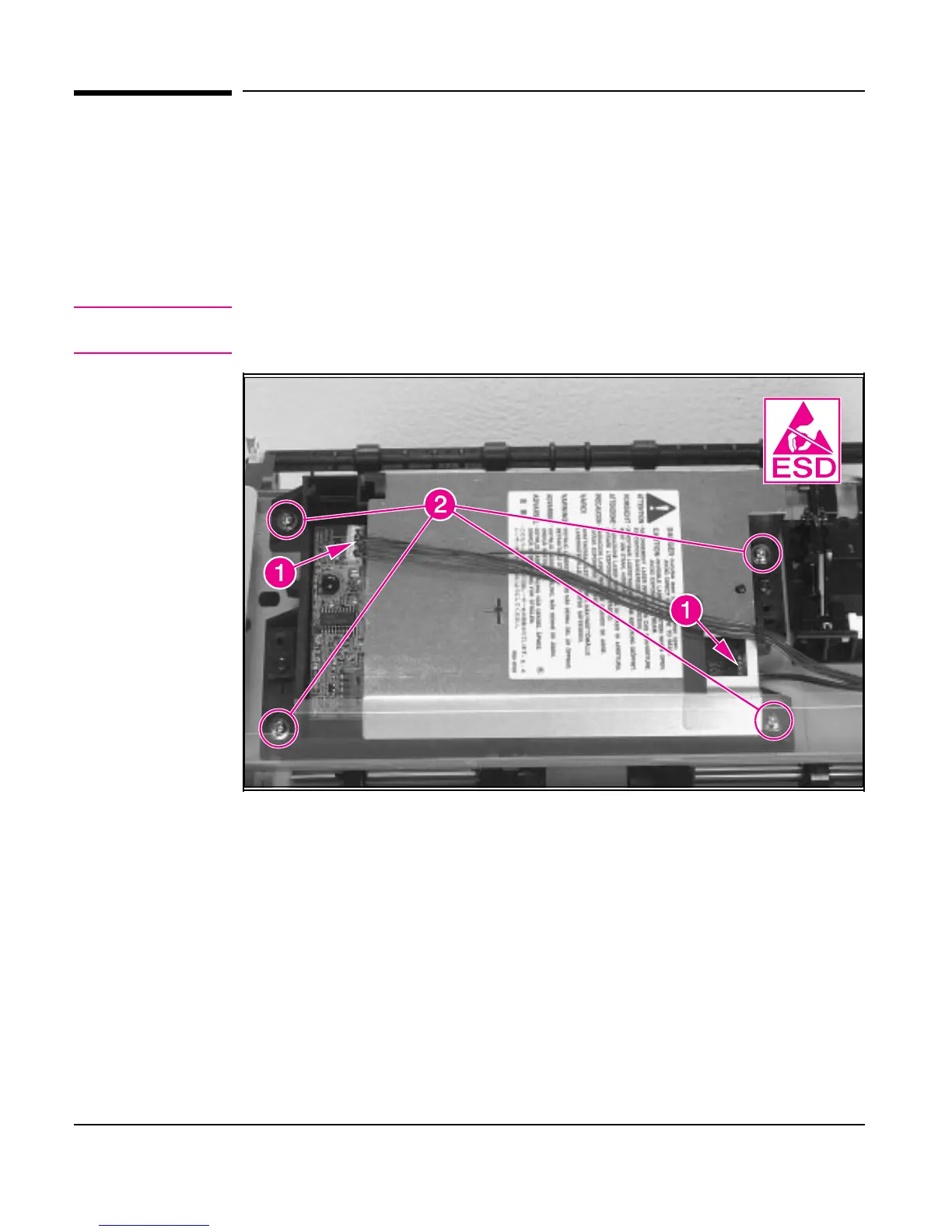

Laser/Scanner Assembly Removal
Figure 6-20
6 - 24 Removal and Replacement
