Basic operation
This chapter presents an overview of the relationships between major components in the product, and
includes a detailed discussion of the image-formation system. The following systems are discussed:
●
Engine control system
●
Laser/scanner system
●
Pickup/feed/delivery system
●
Image-formation system

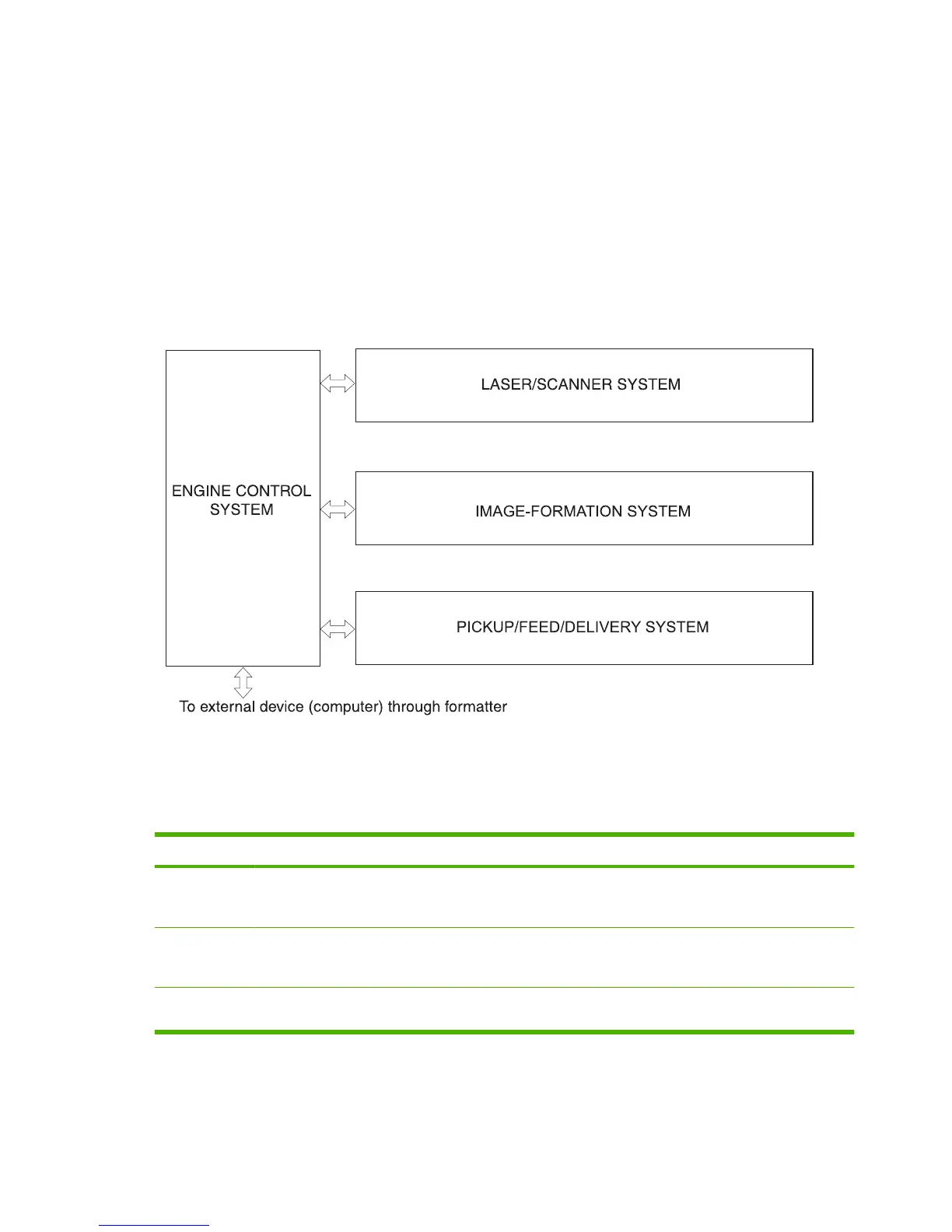

Figure 4-1 System block diagram
Sequence of operation for the base unit
Operational sequences are controlled by the microprocessor on the DC controller.
Table 4-1 Sequence of operation
Name Timing Purpose
WAIT From power-on until the end of the main-motor initial
drive
Detects the presence of a print cartridge; clears
potential from the drum surface and cleans the
transfer roller
STBY (standby) From the end of the WAIT or LSTR period until either
a print command is sent from the formatter or the
power is turned off
Prepares the product to receive print commands
INTR (initial
rotation)
From the time of the print command until the pickup
solenoid is turned on
Prepares the photosensitive drum for printing
34 Chapter 4 Operational theory ENWW

HP LaserJet M1120 - Multifunction Printer Specifications

General

Print Technology	Laser
Scanner Type	Flatbed
Scan Input Colour Depth	24-bit
Functions	Print, Copy, Scan
Print Speed	19 ppm
Connectivity	USB 2.0
Media Sizes Supported	A4, A5, A6, B5, Envelopes
Time to First Page	8.5 sec
Copy Speed	19 cpm
Maximum Number of Copies	99 copies
Maximum Scan Area	21.6 x 29.7 cm
Standard Input Capacity	150 sheets
Standard Output Capacity	100 sheets
Power Consumption (typical)	370 W
Supported Operating Systems	Mac OS
Scan Resolution	Up to 1200 dpi (color and monochrome, flatbed)
