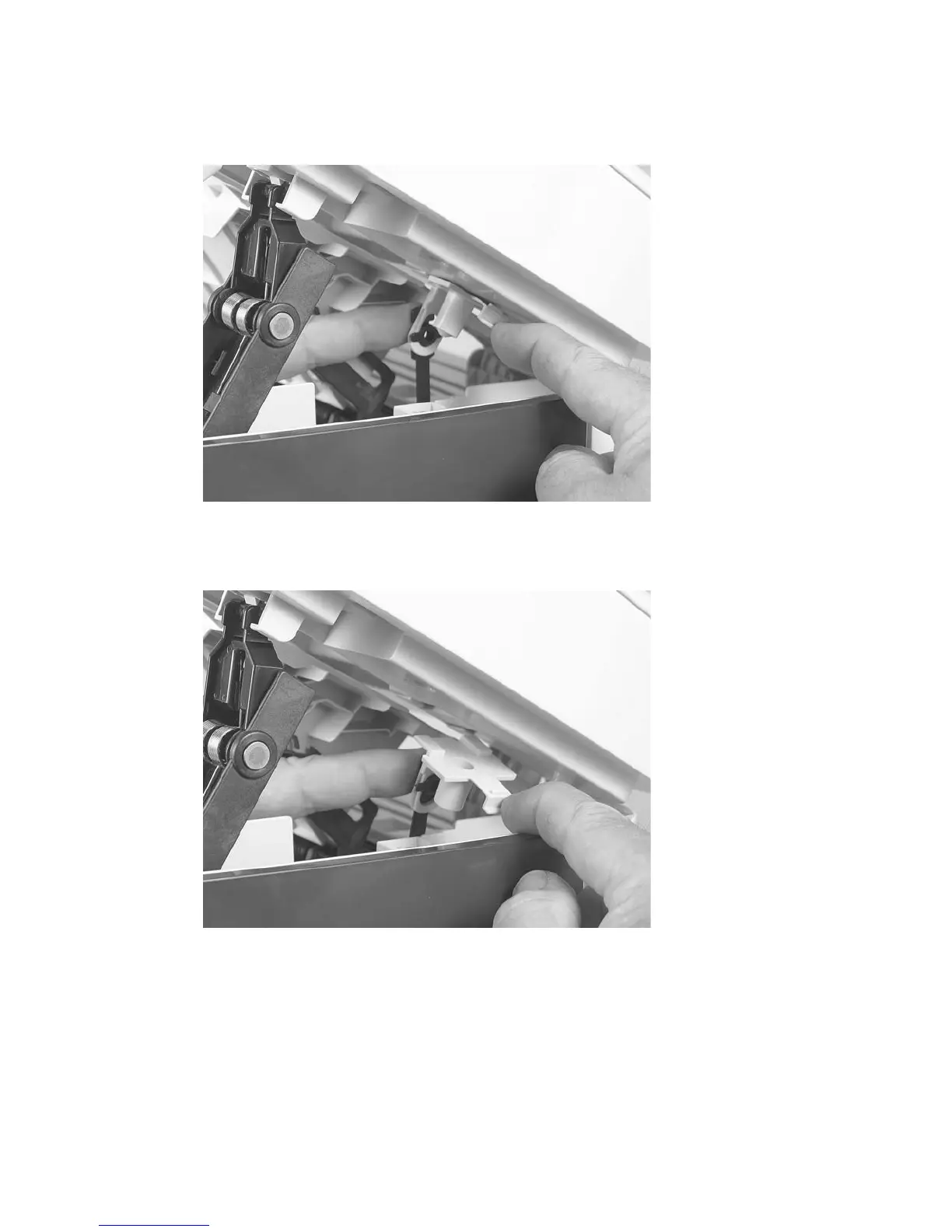

7. Grasp the tab on the gear-drive arm bracket and carefully flex it away from the scanner assembly
to release the bracket.
Figure 5-19 Remove the scanner assembly (7 of 10)
8. Push the bracket toward the right side of the product until its mounting tabs clear the holes in the
scanner assembly.
Figure 5-20 Remove the scanner assembly (8 of 10)
ENWW Scanner assembly 63
