1. Remove the right-side and left-side covers. See Side covers on page 74.
2. Release the lower left-side front-cover locking tab and slightly pry the lower-left corner of the front
cover away from the product.

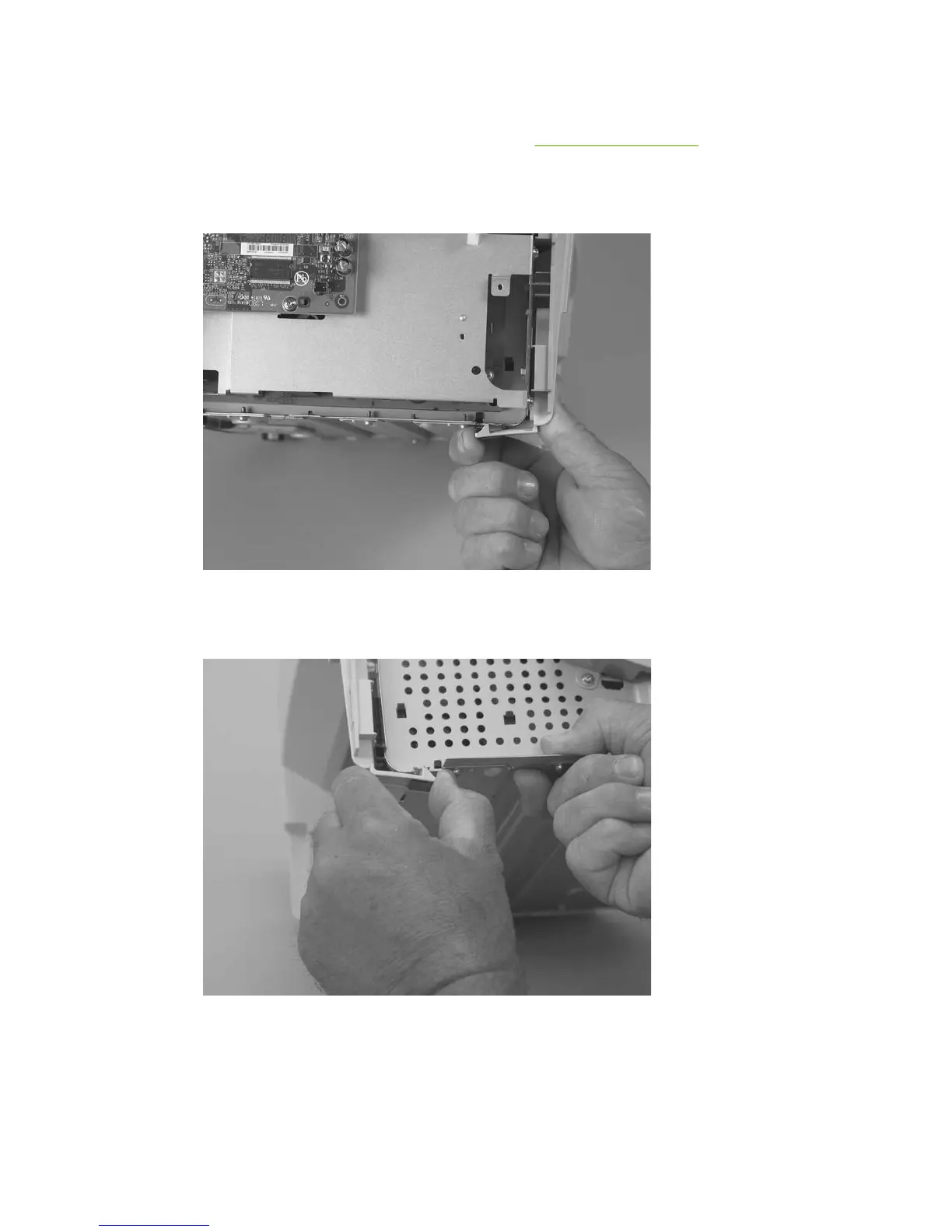

Figure 5-46 Remove the front cover (1 of 4)
3. Release the lower right-side front-cover locking tab (located near the corner of the power supply)
and slightly pry the lower-right corner of the front cover away from the product.
Figure 5-47 Remove the front cover (2 of 4)
ENWW Product base 79
