HP LaserJet M1319 - Multifunction Printer - Page 164

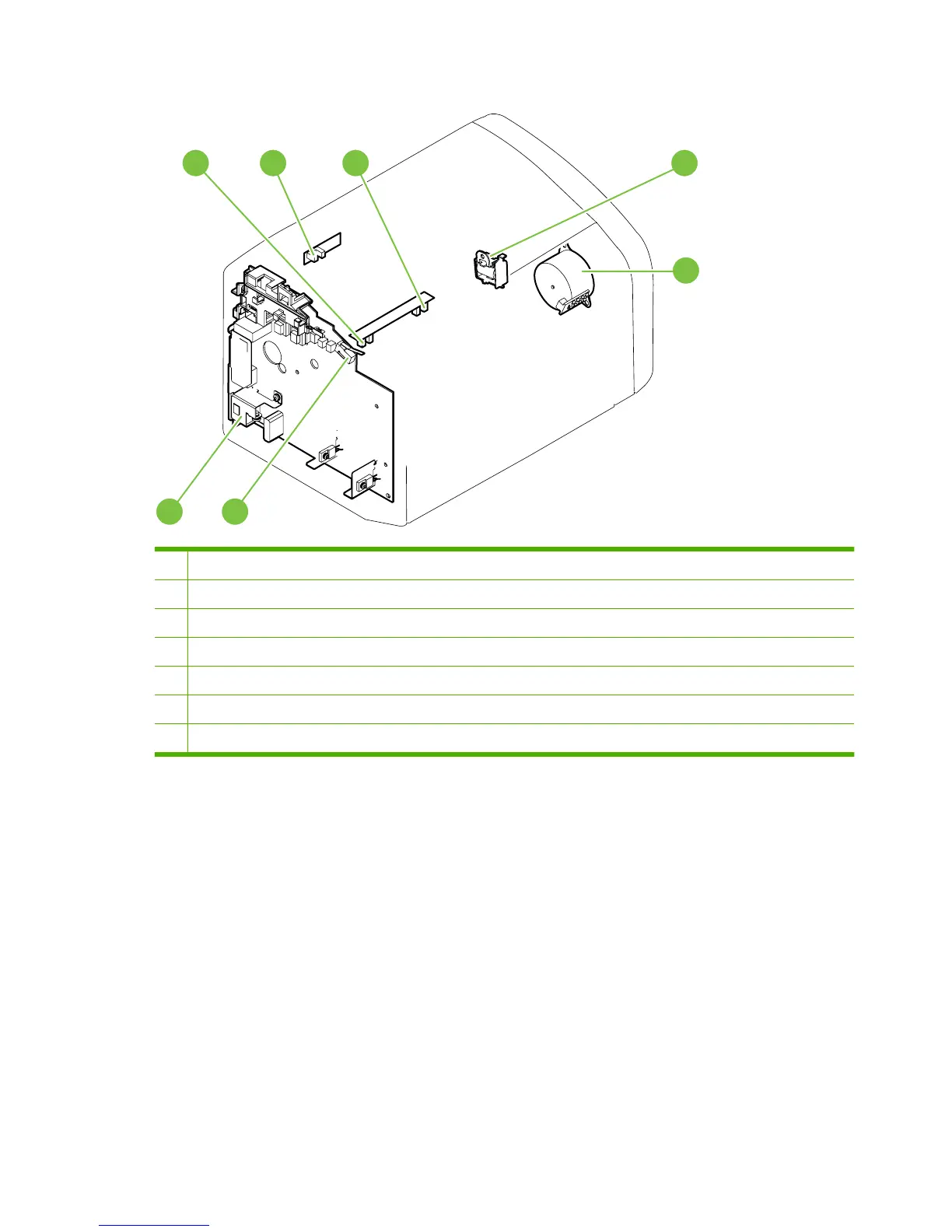

Figure 7-2 Solenoid, sensors, switches, and motor
12
34 5
6
7
1 Print-cartridge-door switch
2 Power switch/power supply
3 Paper-width sensor
4 Paper-delivery sensor
5 Top-of-page sensor
6 Solenoid
7 Motor
