Formatter PCA and fax card connectors

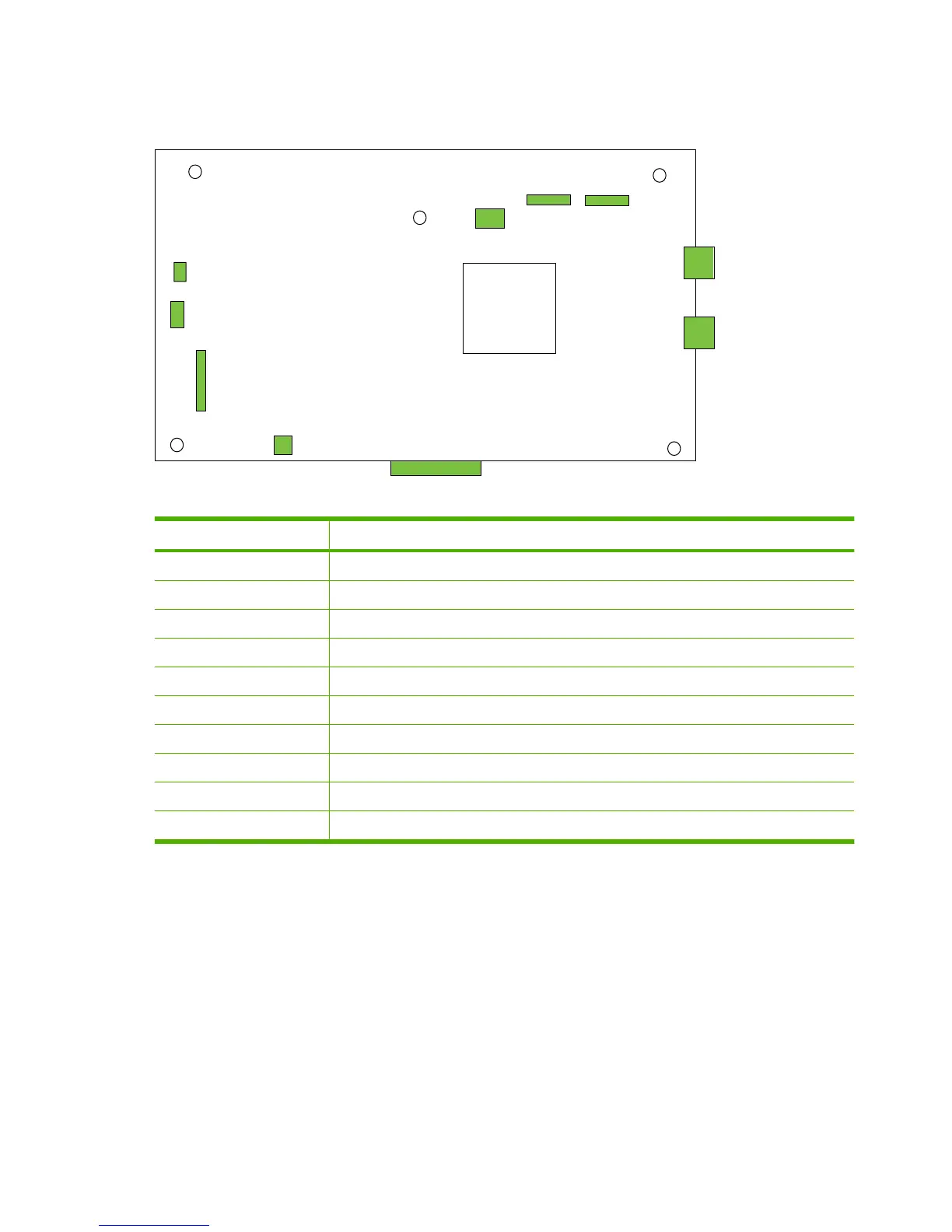

Figure 7-8 Formatter connections
J2
J21
J22
J19
J6
P4
J20
J16
J1
J23
Table 7-2 Formatter connections
Name Connection
P4 ADF
J1 USB
J2 Speaker
J6 Fax card
J16 Scanner (CIS)
J19 Engine solenoid
J20 Control panel
J21 Engine power
J22 Engine
J23 Handset
