Parts lists and diagrams
How to use the parts lists and diagrams
The figures in this chapter show the major subassemblies in the product and their component parts. A
parts list table follows each exploded view assembly diagram. Each table lists the item number, the
associated part number, and the description of each part. If a part is not listed in the table, then it is not
a field replaceable unit (FRU).
CAUTION: Be sure to order the correct part. When looking for part numbers for electrical components,
pay careful attention to the voltage that is listed in the description column to ensure that the part number
selected is for the correct product model.
NOTE: In this manual, the abbreviation “PCA” stands for “printed circuit board assembly.” Components
described as a PCA might consist of a single circuit board or a circuit board plus other parts, such as
cables and sensors.

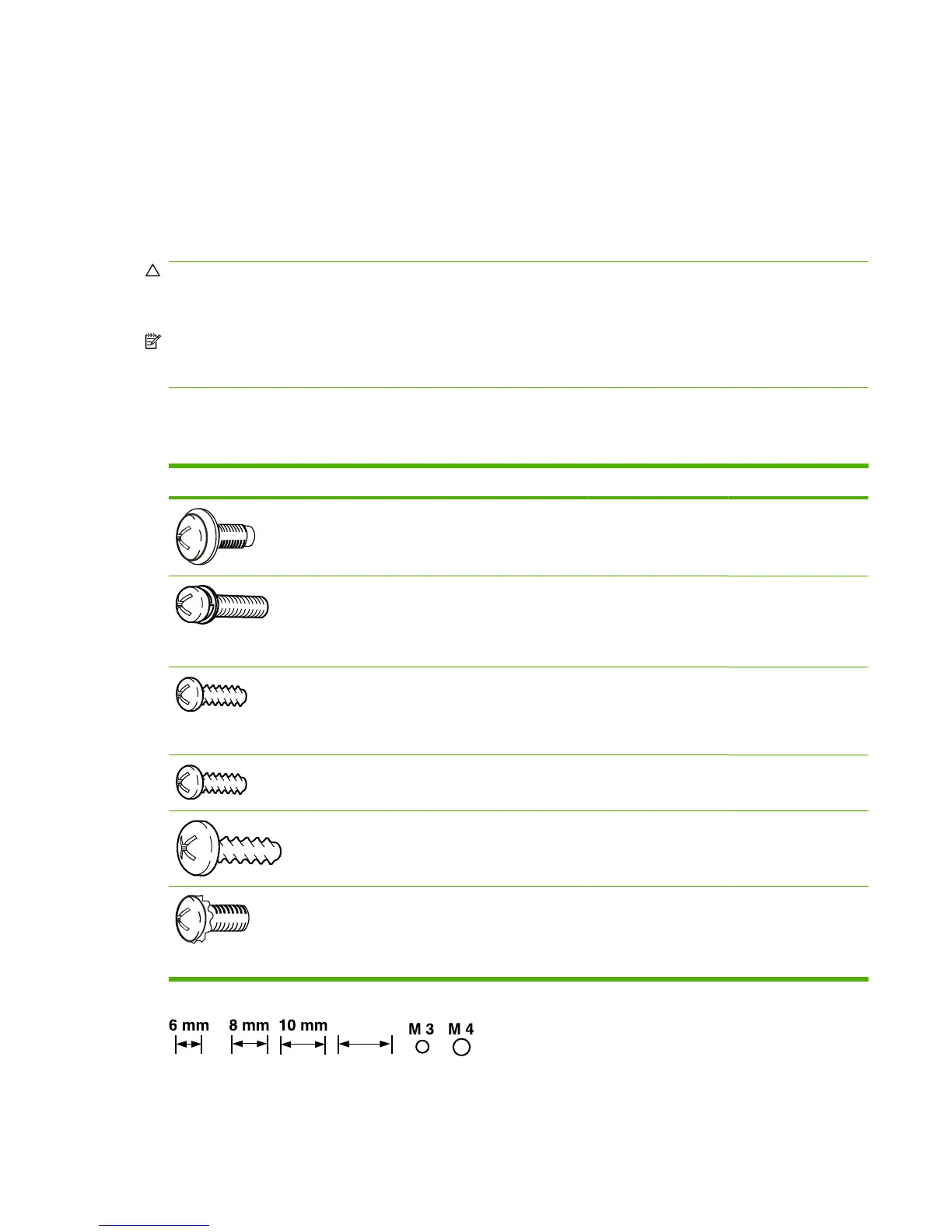

Screws
Table 8-7 Common fasteners
Example Description Size Part Number Use
Screw, machine, truss
head
M3X6
M2X10
XA9-1495-000CN
XA9-1501-000CN
Used to secure metal to
metal
Screw, with washer M3X8
M3X6
M3X6
XA9-1420-000CN
XB2-7300-605CN
XB2-8300-609CN
Used to secure metal
components to metal
components (for
example, a ground wire
to the frame)
Screw, self-tapping BH3X6
M4X10
BH3X6
XB9-1503-000CN
XB4-5401-009CN
XB4-7300-609CN
Used to secure
anything to plastic
Screw, P M4x10 XB4-5401-005CN Used to secure metal to
plastic
Screw, tapping, binding
head
M3X6
M3X8
XB4-5300-609CN
XB4-7300-805CN
Used to secure
anything to plastic
Screw, D M3X6 XA9-1670-000CN Used to secure metal
components to metal
components (for
example, a ground wire
to the frame)
12 mm
