Cover rear (document feeder rear cover)
1. Open the document feeder, and then remove three screws.

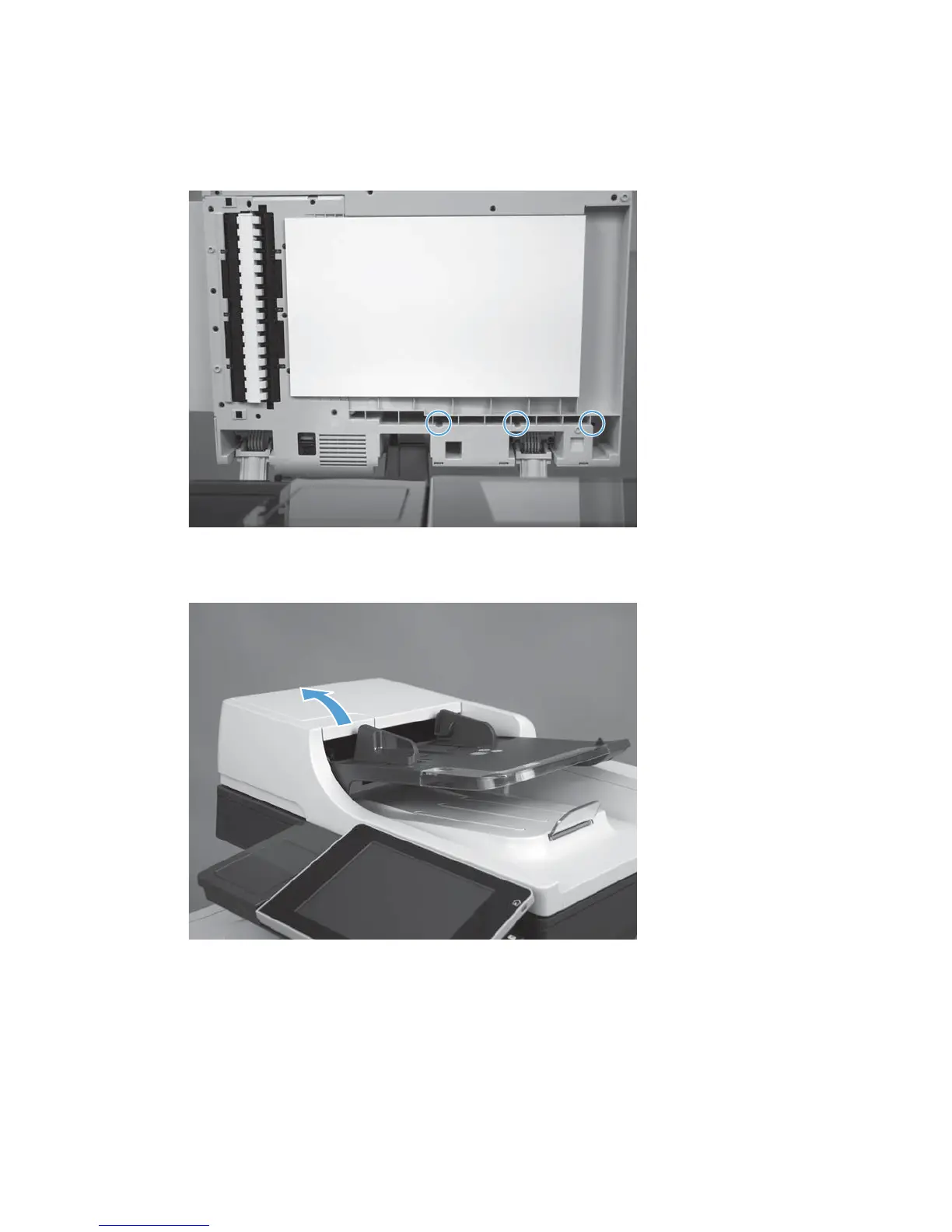

Figure 1-170 Remove the document feeder rear cover (1 of 4)
2. Close the document feeder and then open the jam-access cover.
Figure 1-171 Remove the document feeder rear cover (2 of 4)
