6. Release one tab (callout 1), and then remove the guide.

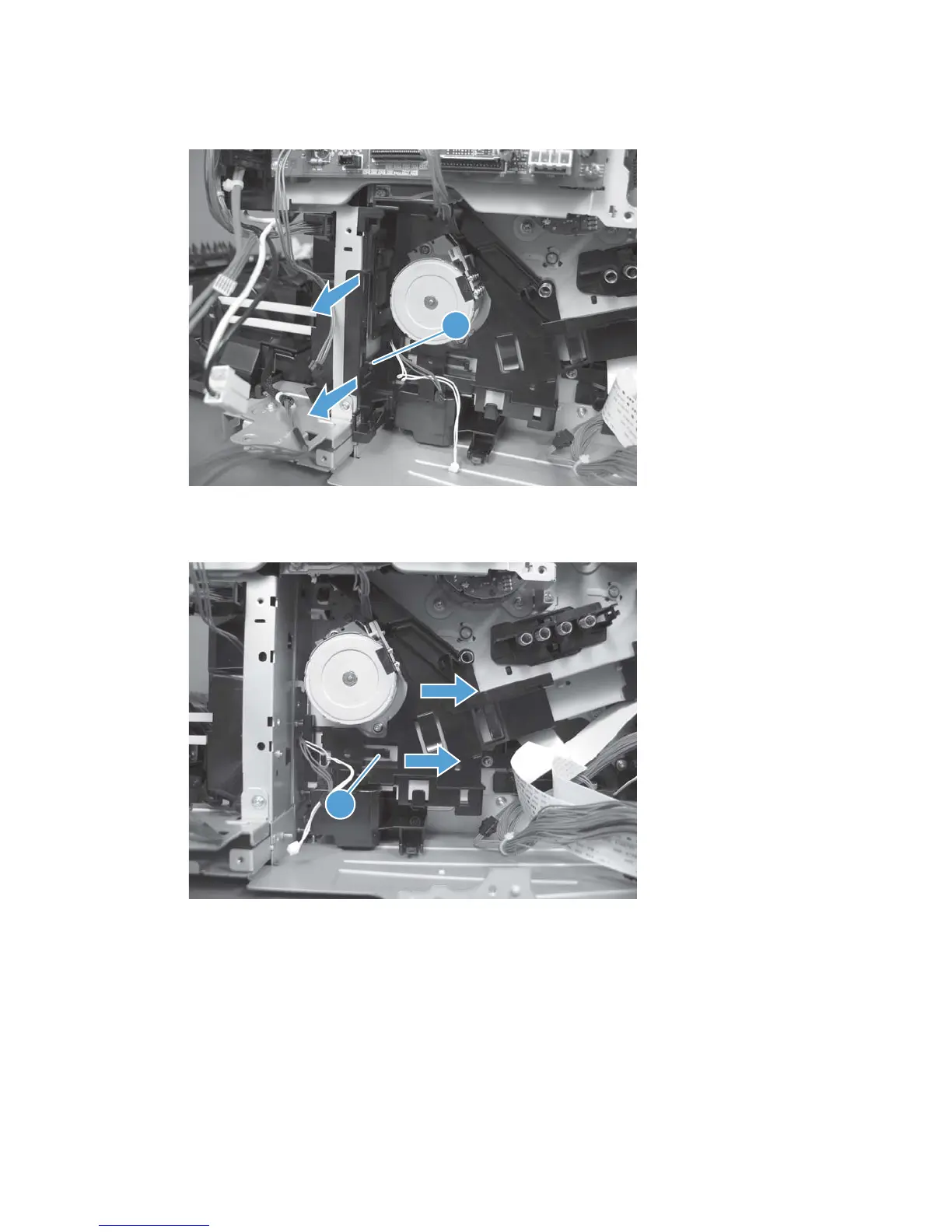

Figure 1-290 Remove the tray-pickup drive assembly (6 of 10)
1
7. Release one tab (callout 1), and then remove the guide.
Figure 1-291 Remove the tray-pickup drive assembly (7 of 10)
1
200 Chapter 1 Removal and replacement ENWW
