10. Carefully remove the assembly.
CAUTION: The gears, arm, and spring on the assembly are not captive. Use your finger to
secure the arm and spring as you remove the assembly. If the gears, arm, or spring become
dislodged, see
Reinstall the tray-pickup drive assembly on page 202.

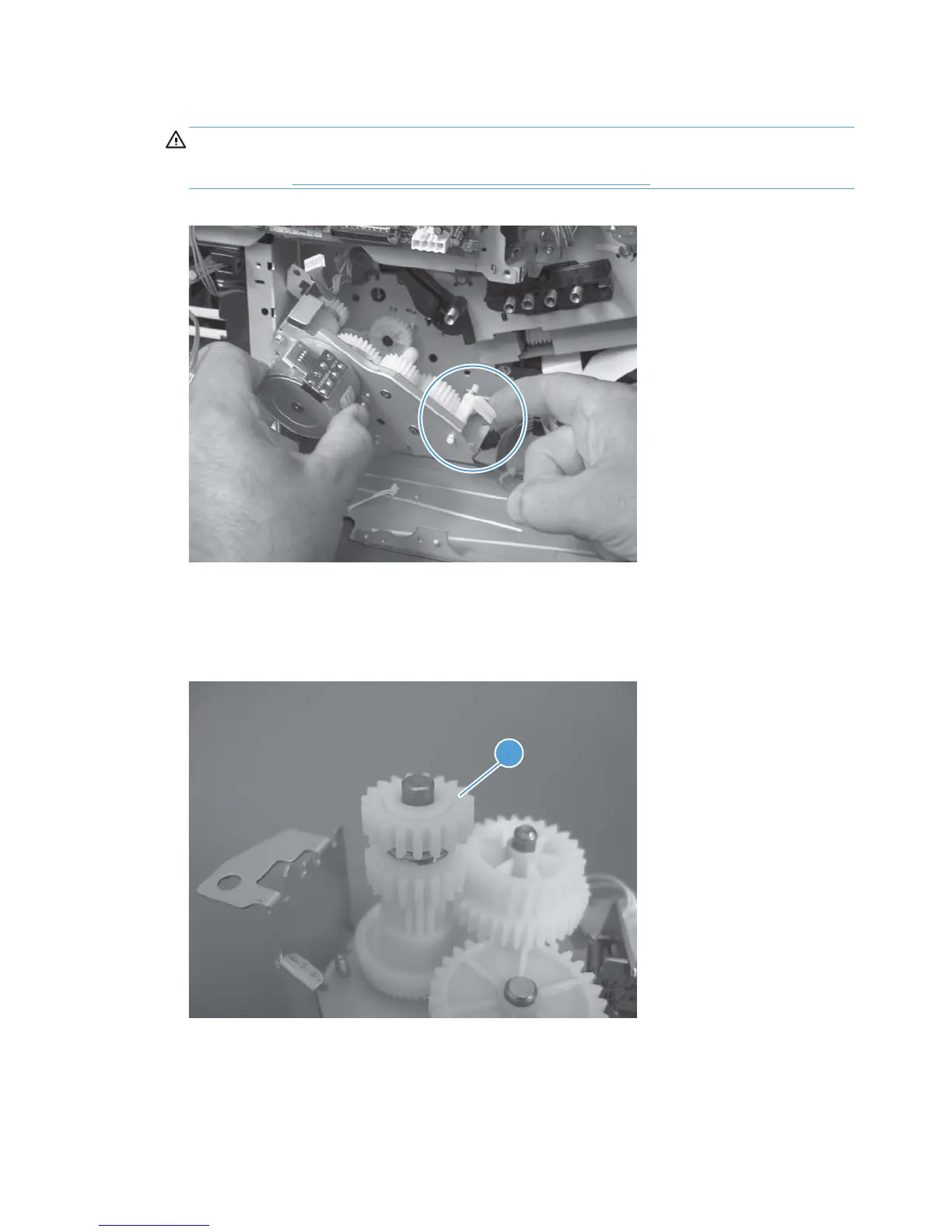

Figure 1-294 Remove the tray-pickup drive assembly (10 of 10)
Reinstall the tray-pickup drive assembly
1. Make sure that the spring-loaded gear (callout 1) is correctly installed.
Figure 1-295 Reinstall the tray-pickup drive assembly (1 of 3)
1
202 Chapter 1 Removal and replacement ENWW
