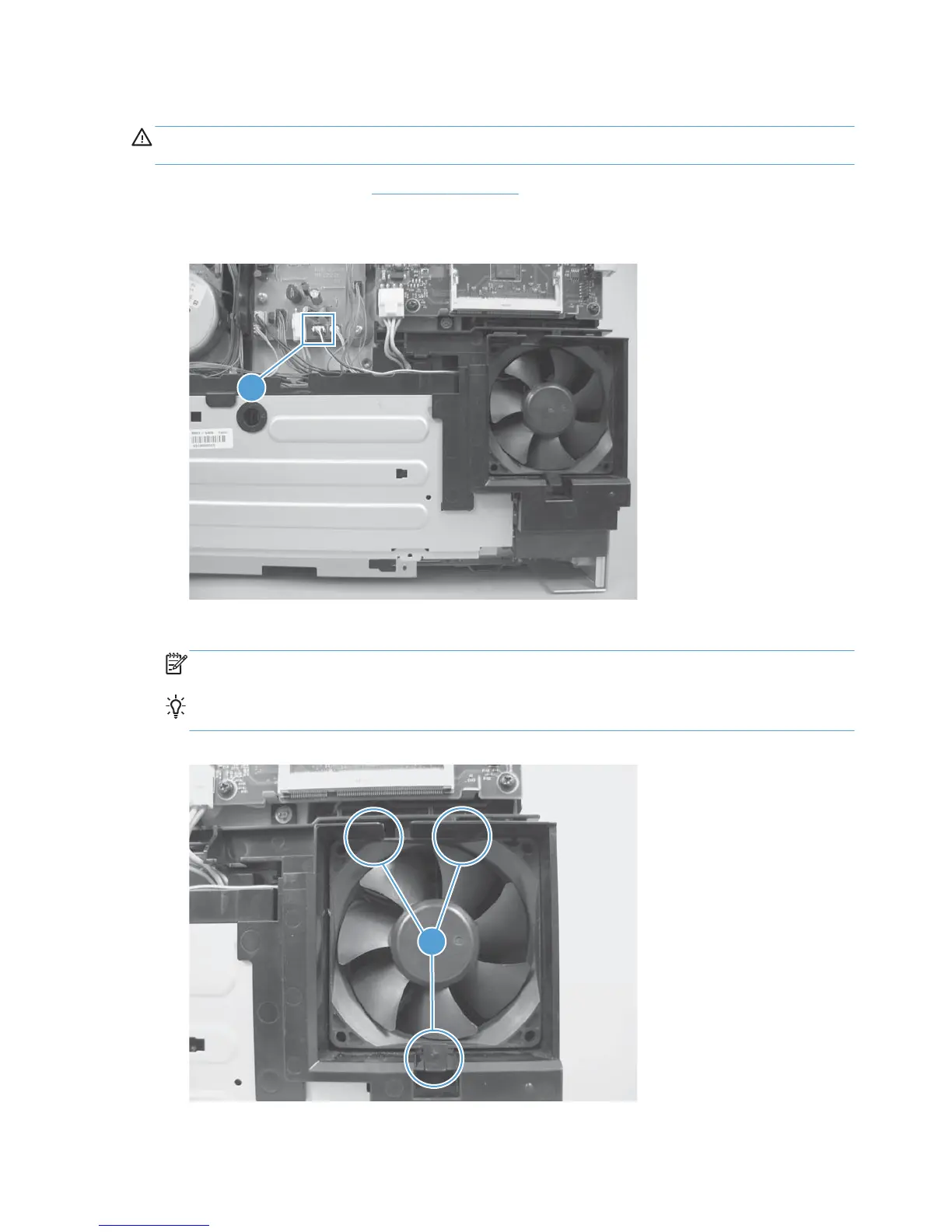

Fan (FM1)
CAUTION: When the fan is reinstalled, it must pull air into the product. The air-flow indicator arrow
embossed on the fan chassis point into the fan duct when the fan is correctly installed.
1. Remove the right cover. See Right cover on page 25.
2. Disconnect one connector (callout 1; J206)
Figure 1-111 Remove the fan (FM1) (1 of 2)
3. Release three tabs (callout 1), and then remove the fan.
NOTE: As the fan is removed, you must feed the wire harness through an opening behind the fan duct.
TIP: Use a small flat blade screwdriver to release the upper to tabs on the fan duct a second time
when the fan is about half way out of the duct.
Figure 1-112 Remove the fan (FM1) (2 of 2)
82 Chapter 1 Removal and replacement ENWW
