HP LaserJet Pro Color MFP M476dn - Page 109

8. Remove two screws (callout 1) and remove the duplex-gear assembly (callout 2). Install the assembly
on the replacement fuser.

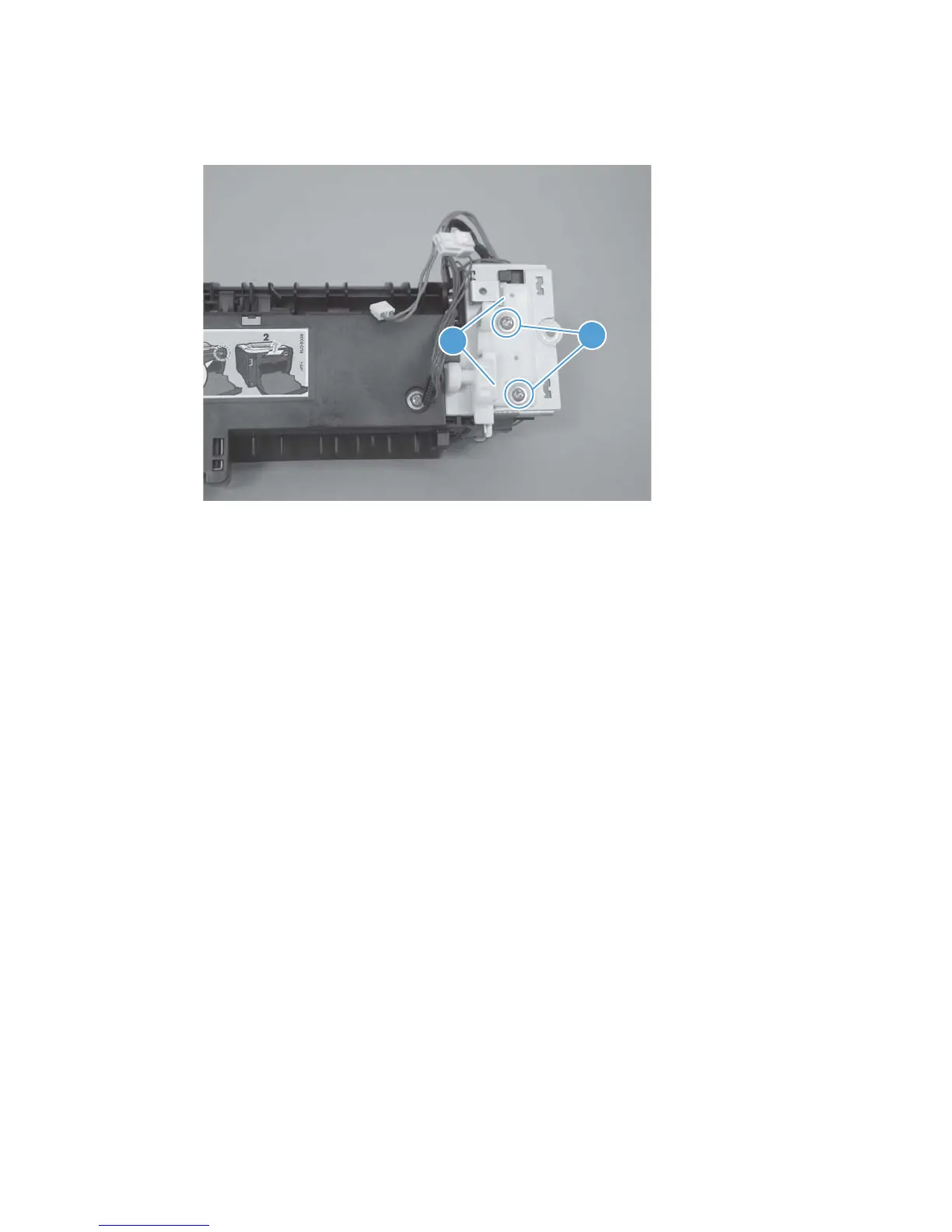

Figure 1-125 Remove the fuser (8 of 8)
1
2
ENWW Removal and replacement procedures 91
