4. Remove the paper-delivery assembly.

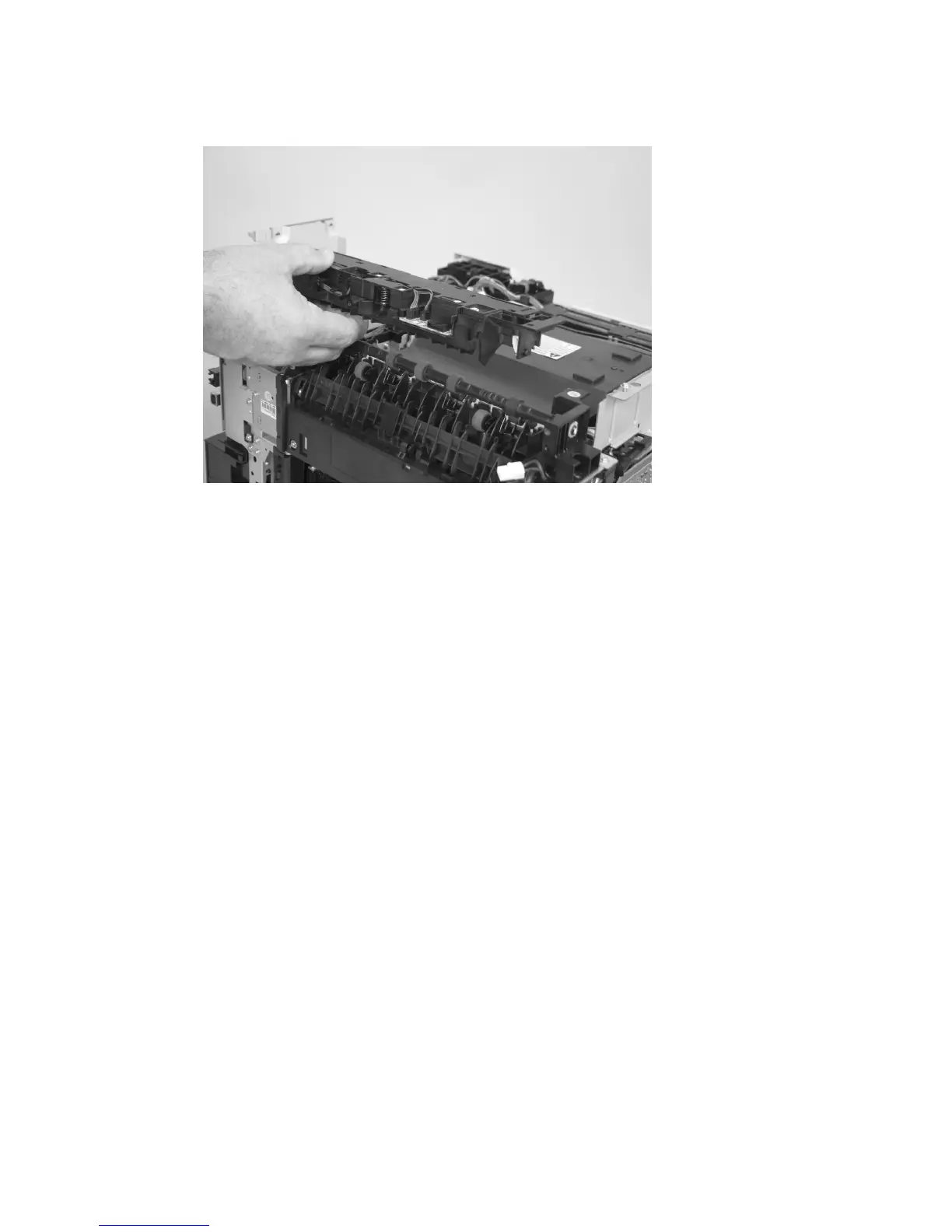

Figure 1-130 Remove the paper-delivery assembly (4 of 4)
Low voltage power supply
Before removing the low voltage power supply, remove the following parts:
●
Right cover.
●
Right-front cover and power button.
●
Scanner assembly.
●
M476nw only: Rear door.
●
M476dn and M476dw: Rear-upper cover.
●
Control panel and right-arm mount.
●
Upper-cover assembly.
ENWW Removal and replacement procedures 95
