HP LaserJet Pro Color MFP M476dn

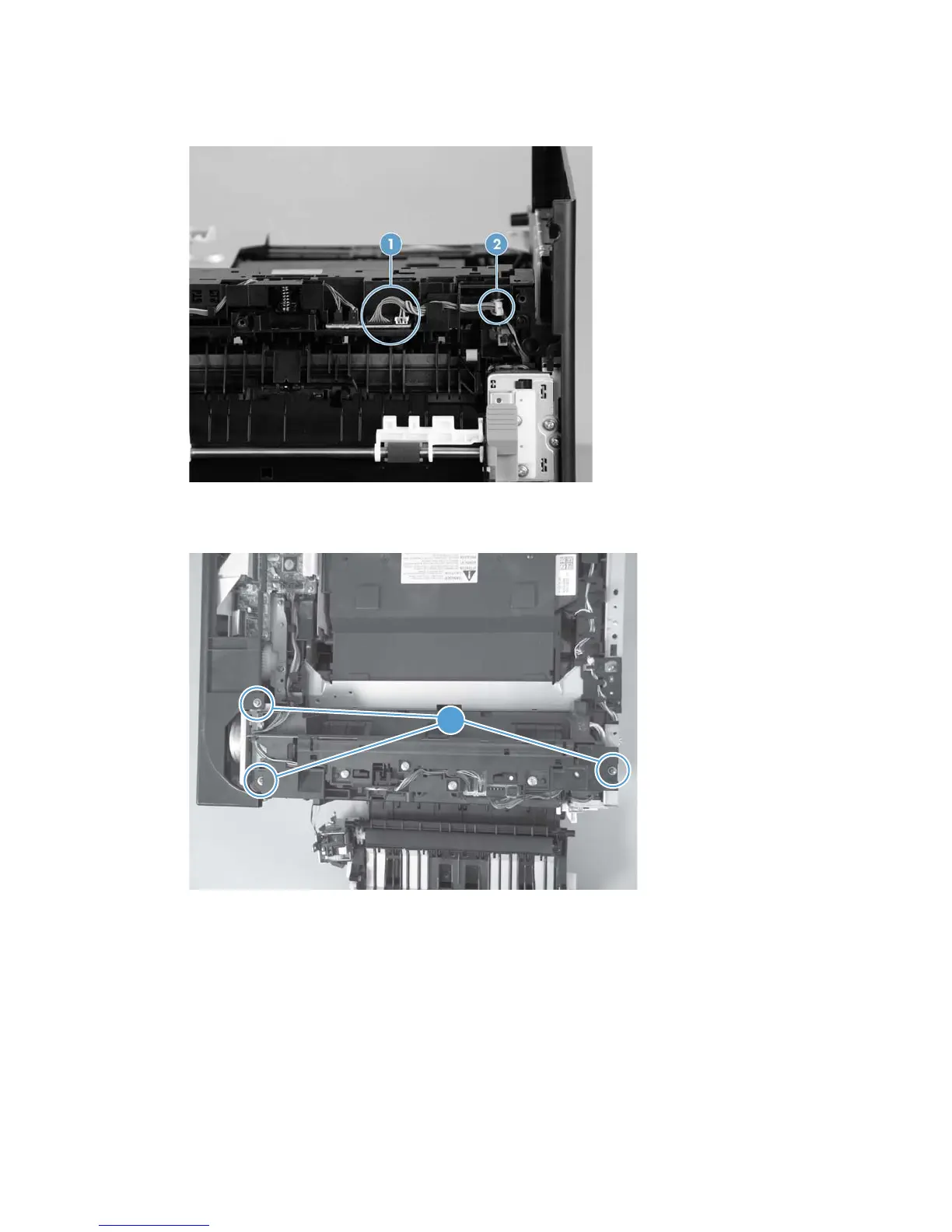

2. Disconnect two connectors (callout 1), and then release the wire harness from the wire clip (callout 2).
Figure 1-128 Remove the paper-delivery assembly (2 of 4)
3. Remove three screws (callout 1).
Figure 1-129 Remove the paper-delivery assembly (3 of 4)
1
94 Chapter 1 Removal and replacement ENWW
