Paper-delivery assembly
Before proceeding, remove the following components:
●
Right cover. See Right cover on page 25.
●
Scanner assembly. See Scanner assembly on page 17.
●
Rear-upper cover. See Rear-upper cover on page 28.
●
Rear door. See Rear door on page 30.
●
Rear-lower cover. See Rear-lower cover and rear-door links on page 32.
●
Upper-cover assembly. See Upper-cover assembly on page 42.
●
Left cover. See Left cover on page 45.
Remove the paper-delivery assembly
1. Disconnect three connectors (callout 1), and then release the wire harnesses from the retainer
(callout 2).

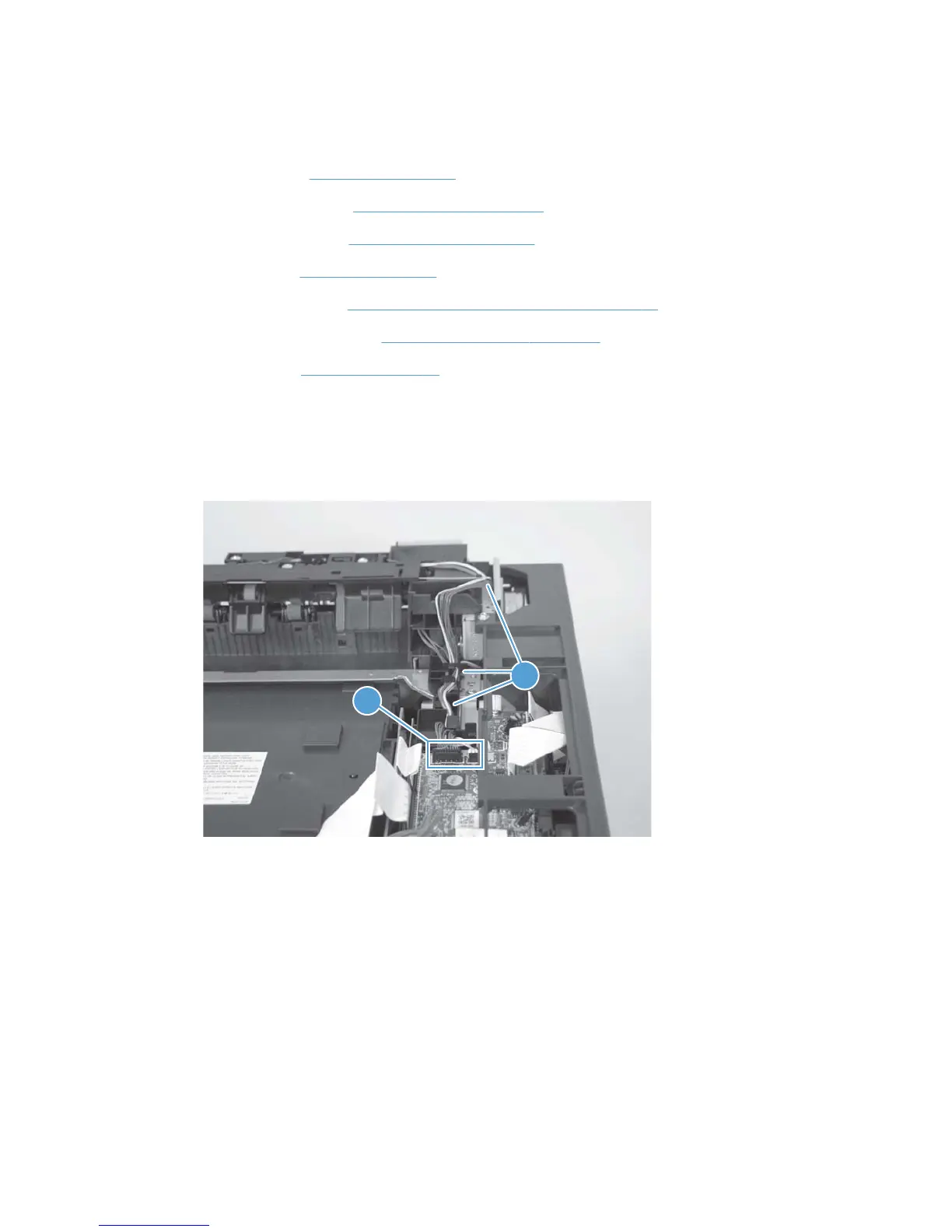

Figure 1-127 Remove the paper-delivery assembly (1 of 4)
