2. Carefully raise the front of the product.
WARNING! Do not place the product face-up resting on the rear cover and rear door unless you have
removed all toner cartridges. Excess toner might enter the laser/scanner assembly and contaminate
the mirrors, causing print-quality problems. The laser/scanner is not a FRU. If the laser/scanner mirrors
are contaminated, the entire product must be replaced.
CAUTION: The document feeder and scanner cover are not captive and can open suddenly when the
product is placed front-side face up. Always support the document feeder and scanner cover before
placing the product front-side face up.
Do not lift the product grasping the front door and Tray 2 cavity.
NOTE: The roller is located inside the tray cavity.

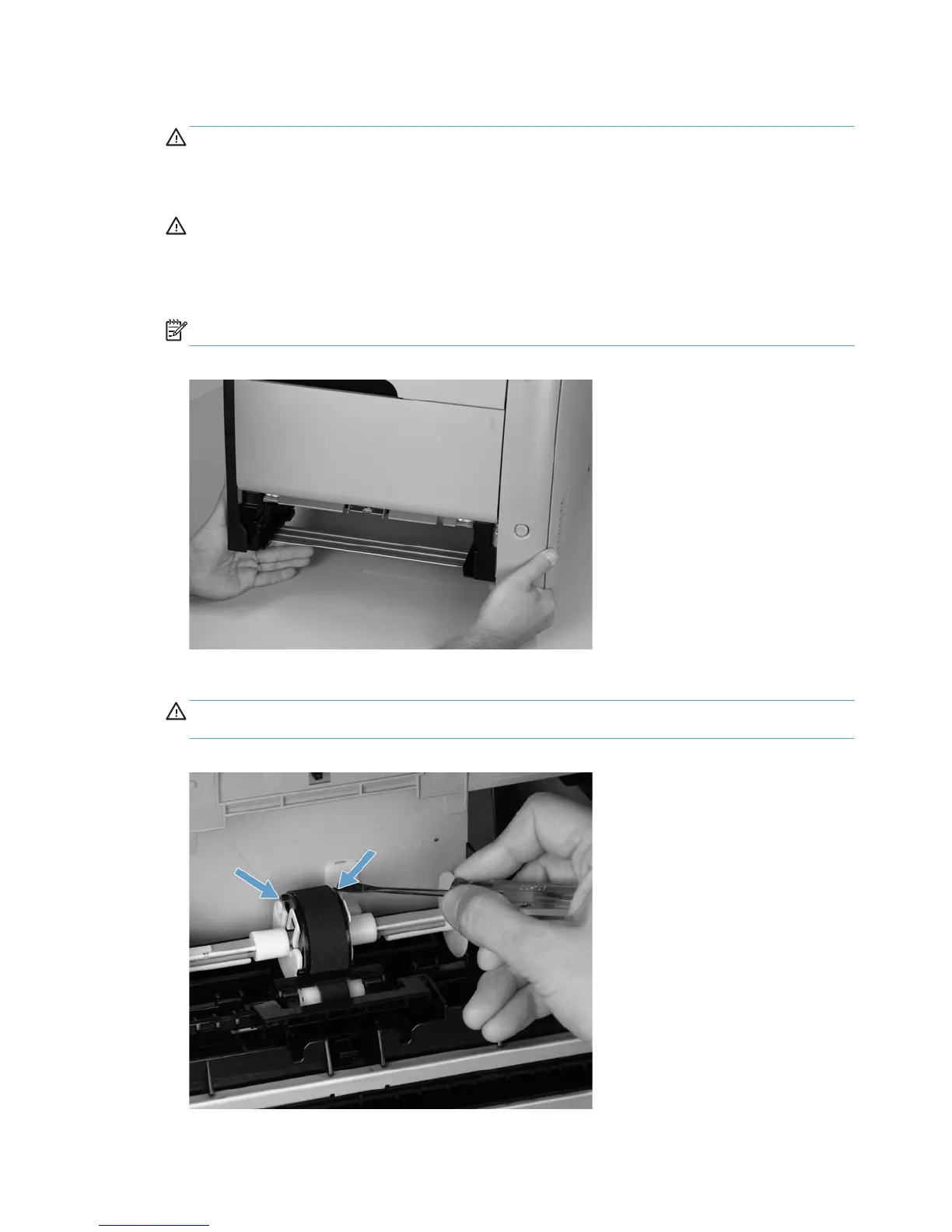

Figure 1-2 Raise the front of the product
3. Use a precision slotted (flat head) screwdriver to release two locking tabs and remove the pickup roller.
CAUTION: Do not touch the spongy roller surface unless you are going to replace the roller. Skin oils
on the roller can cause paper pickup problems.
Figure 1-3 Remove the pickup roller
10 Chapter 1 Removal and replacement ENWW
