HP LaserJet Pro Color MFP M476dn

4. Slightly lift up the back of the scanner, and then slide it toward the front of the product.

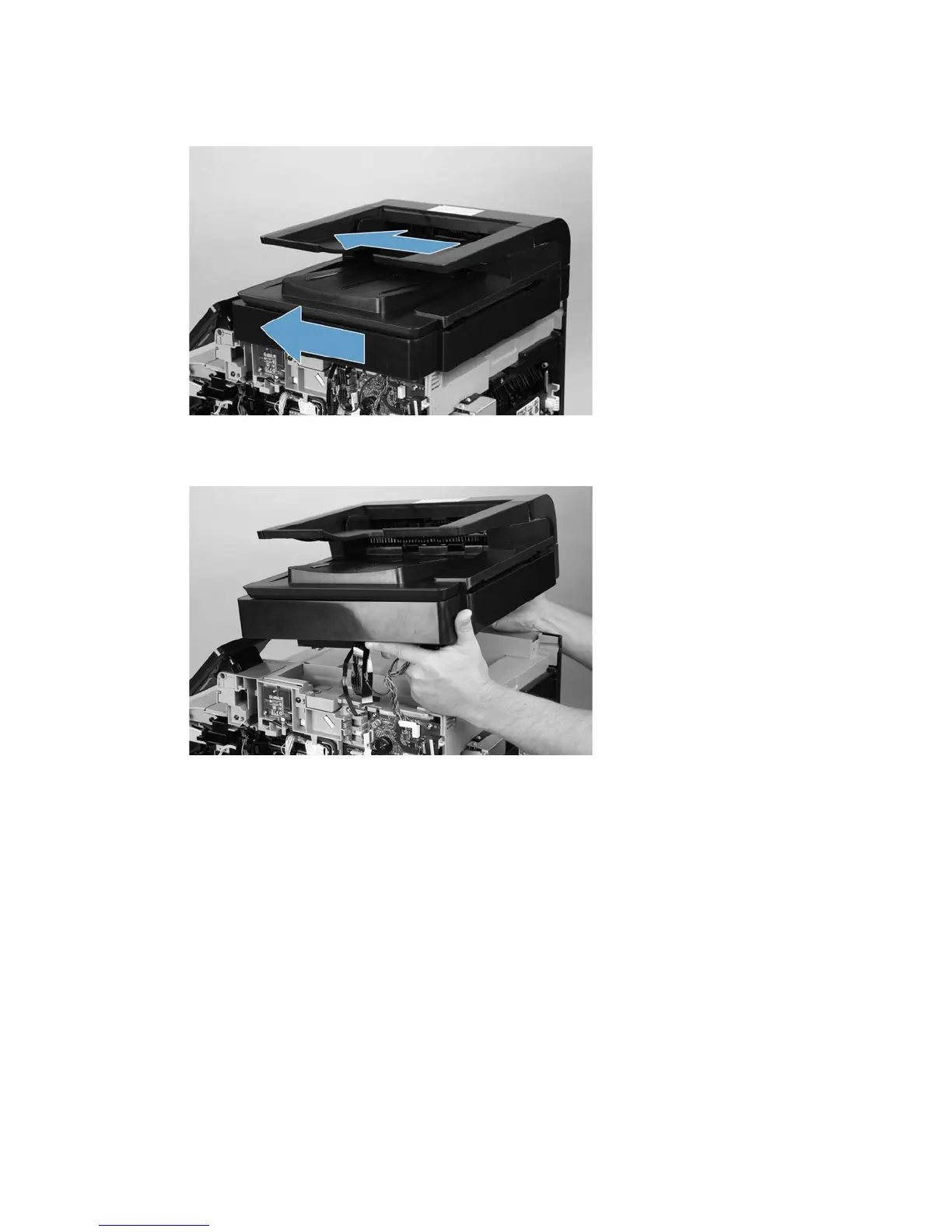

Figure 1-16 Lift and slide the scanner assembly
5. Lift the scanner straight up and off of the product.
Figure 1-17 Lift the scanner up and off the product
Document feeder
Remove the scanner cable cover
Before proceeding, remove the following:
●
Right cover.
●
Scanner assembly/ADF.
18 Chapter 1 Removal and replacement ENWW
