Scanner and document feeder
Scanner assembly
1. Remove the right cover. See Right cover on page 25.
2. Disconnect one ground cable (callout 1), one connector (callout 2), and three FFCs (callout 3).
NOTE: Use a small slotted (flat head) screwdriver to release the ferrite and expose the FFC.
WARNING! The ferrite and cable are fragile. Take care to not damage them when releasing the ferrite.

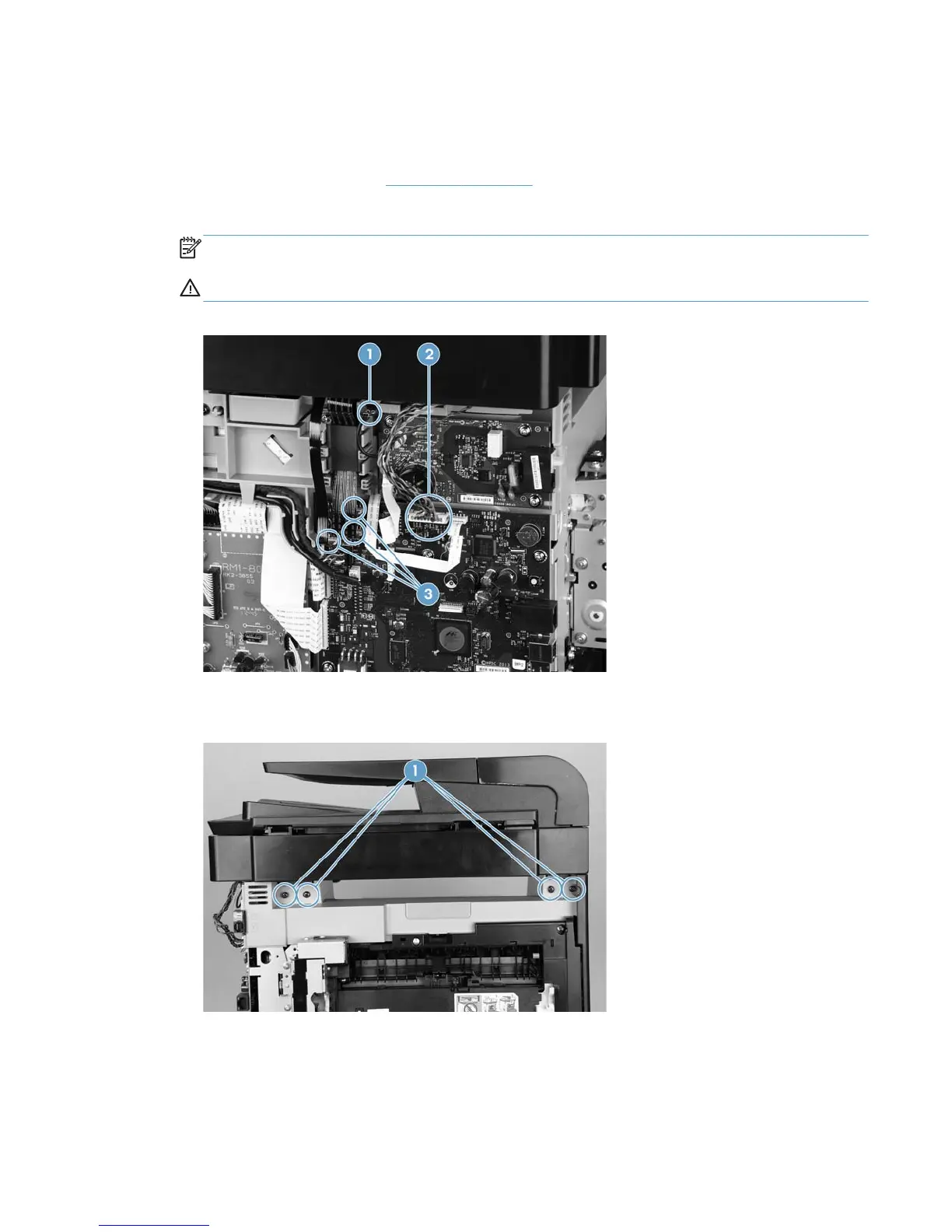

Figure 1-14 Disconnect the ground cable, connector, and FFCs
3. Remove four screws (callout 1).
Figure 1-15 Remove four screws
ENWW Removal and replacement procedures 17
