5. Release the retainer tabs, and then remove the separation pad from the base.
NOTE: The separation pad base can easily be dislodged when the pad is removed. If the base is
dislodged, do not loose the spring under the base (it is not captive).

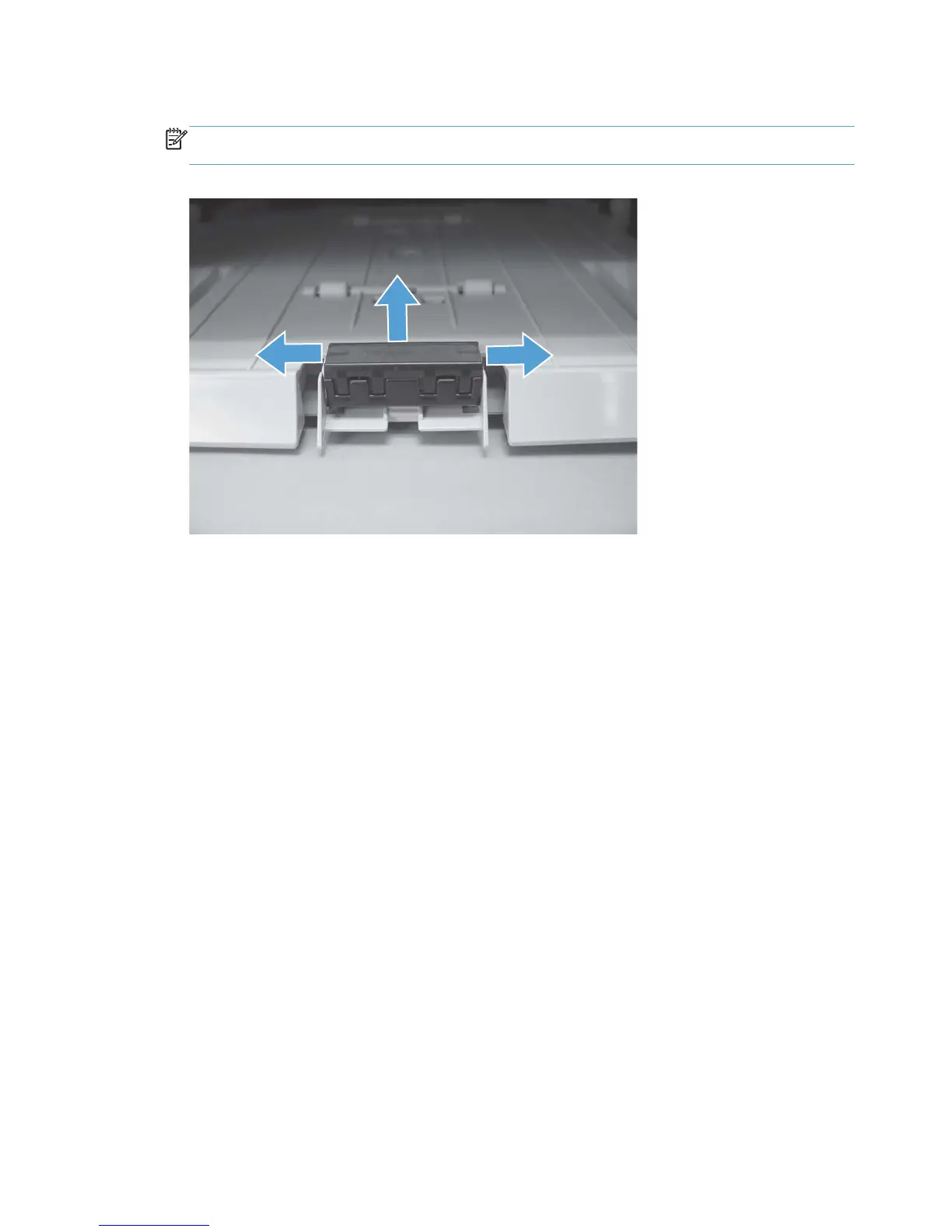

Figure 1-13 Remove the Tray 1 separation pad
