3. Carefully raise the front of the product.
WARNING! Do not place the product face-up resting on the rear cover and rear door. Excess toner
might enter the laser/scanner assembly and contaminate the mirrors, causing print-quality problems.
The laser/scanner is not a FRU. If the laser/scanner mirrors are contaminated, the entire product must
be replaced.
CAUTION: The document feeder and scanner cover are not captive and can open suddenly when the
product is placed front-side face up. Always support the document feeder and scanner cover before
placing the product front-side face up.
CAUTION: Do not lift the product grasping the front door and Tray 2 cavity.

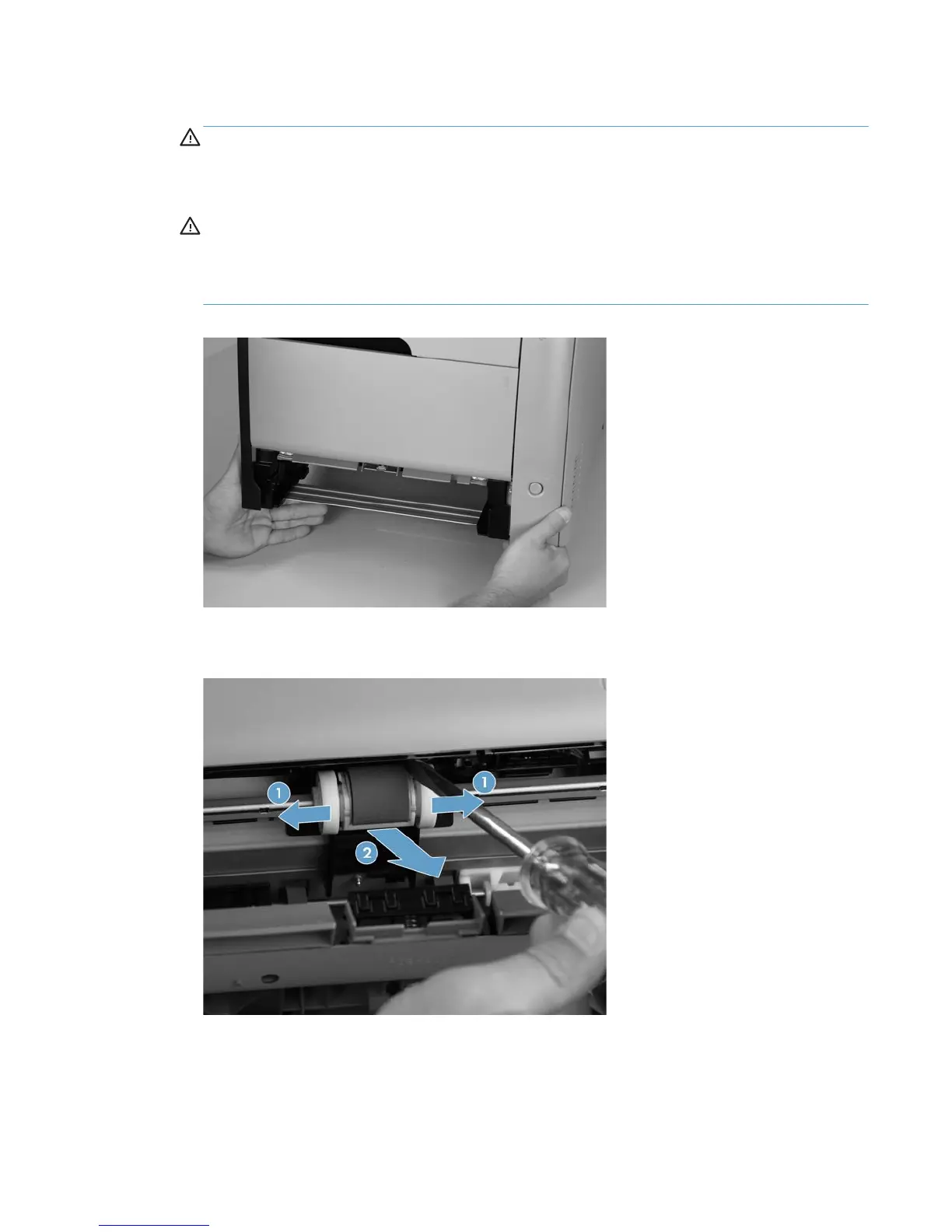

Figure 1-11 Raise the front of the product
4. Release two tabs, and then rotate the roller away from the product to remove it.
Figure 1-12 Remove the Tray 1 pickup roller (3 of 3)
ENWW Removal and replacement procedures 15
