Right cover
1. Open the rear door.
2. Remove three screws (callout 1).

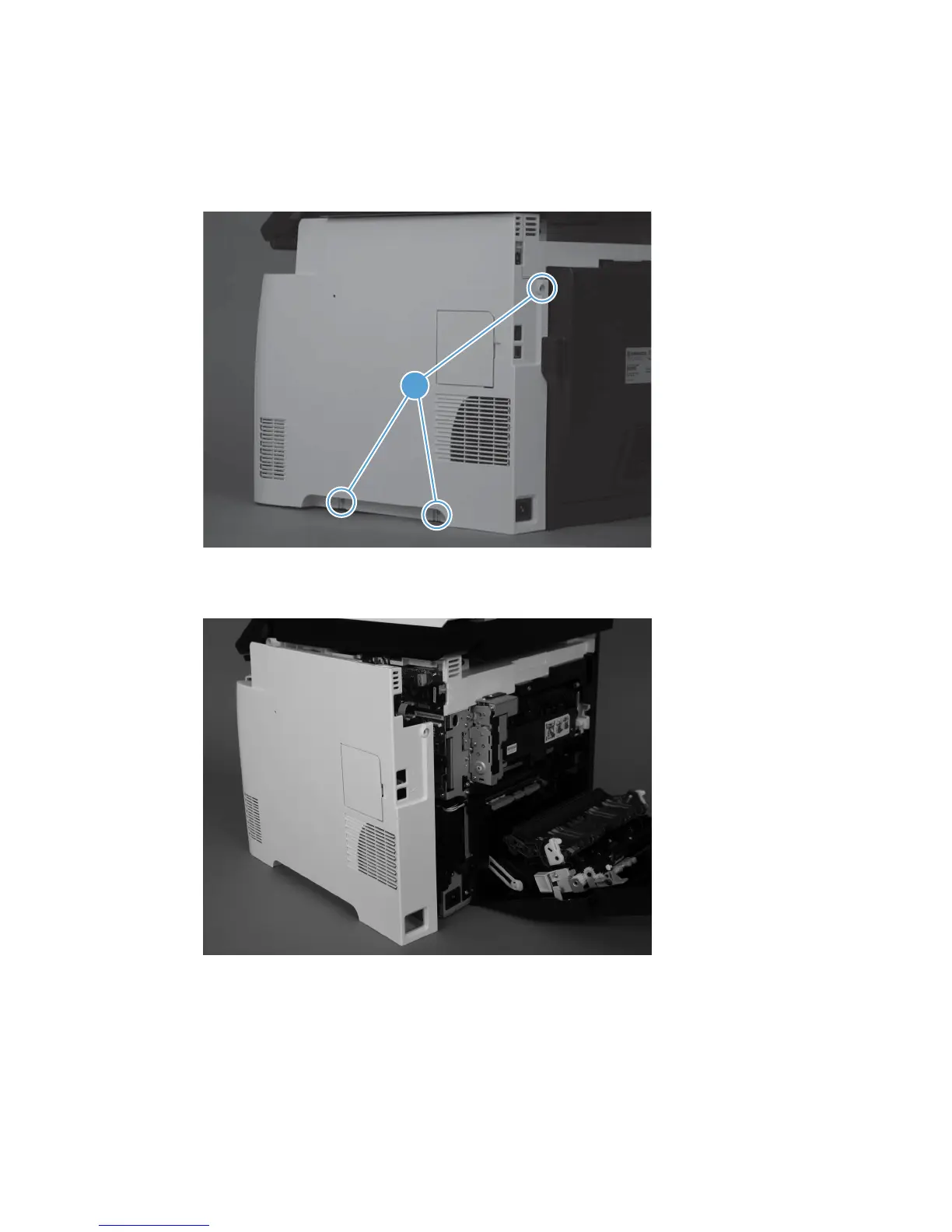

Figure 1-26 Remove the right cover (1 of 2)
1
3. Slide the right cover toward the back of the product and remove the cover.
Figure 1-27 Remove the right cover (2 of 2)
ENWW Removal and replacement procedures 25
