Right-front cover and power button

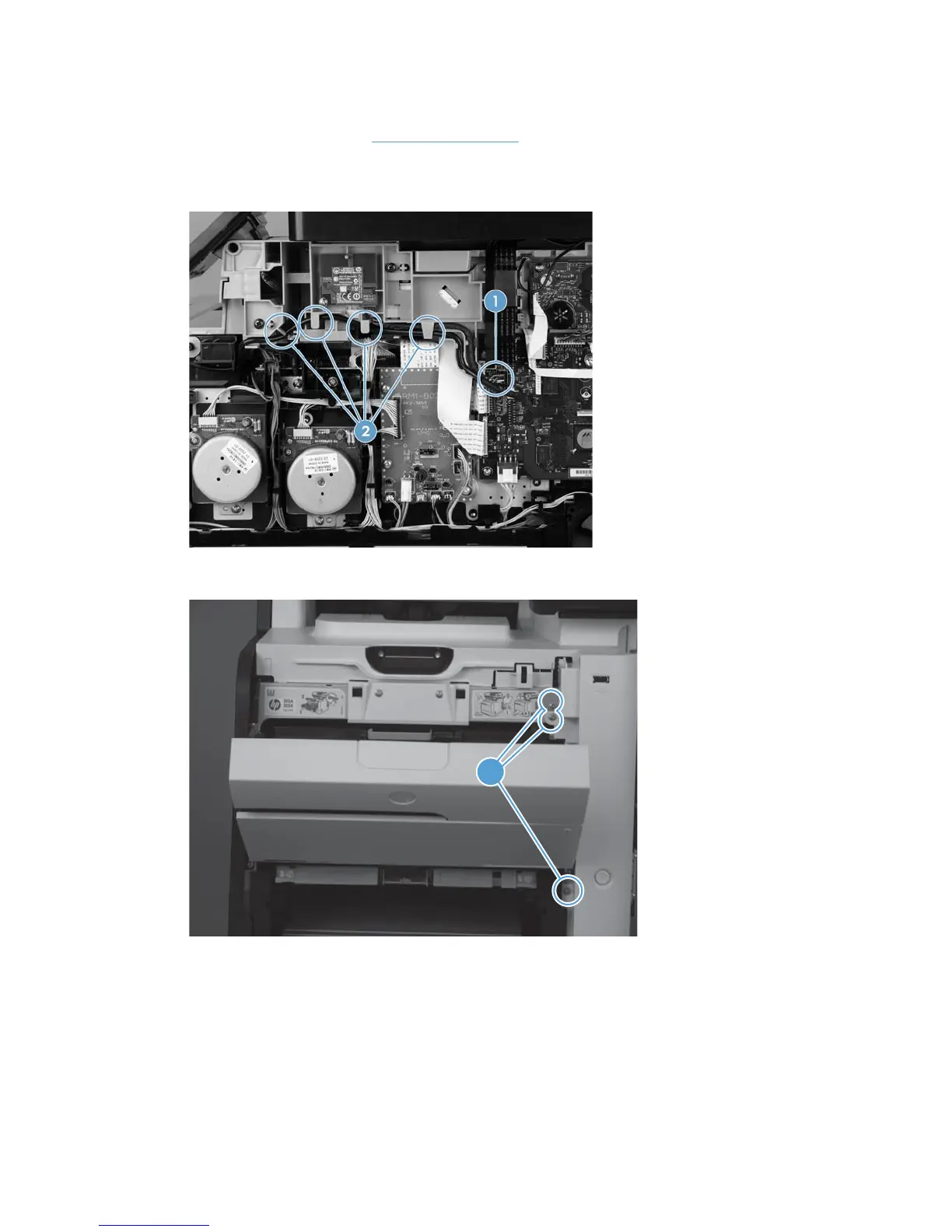

1. Remove the right cover. See Right cover on page 25.
2. Disconnect the USB PCA connector from the formatter PCA (callout 1), and then release the wire from
the retainer (callout 2).
3. Open the front door, and then remove three screws (callout 1).
