HP LaserJet Pro Color MFP M476dn - Page 45

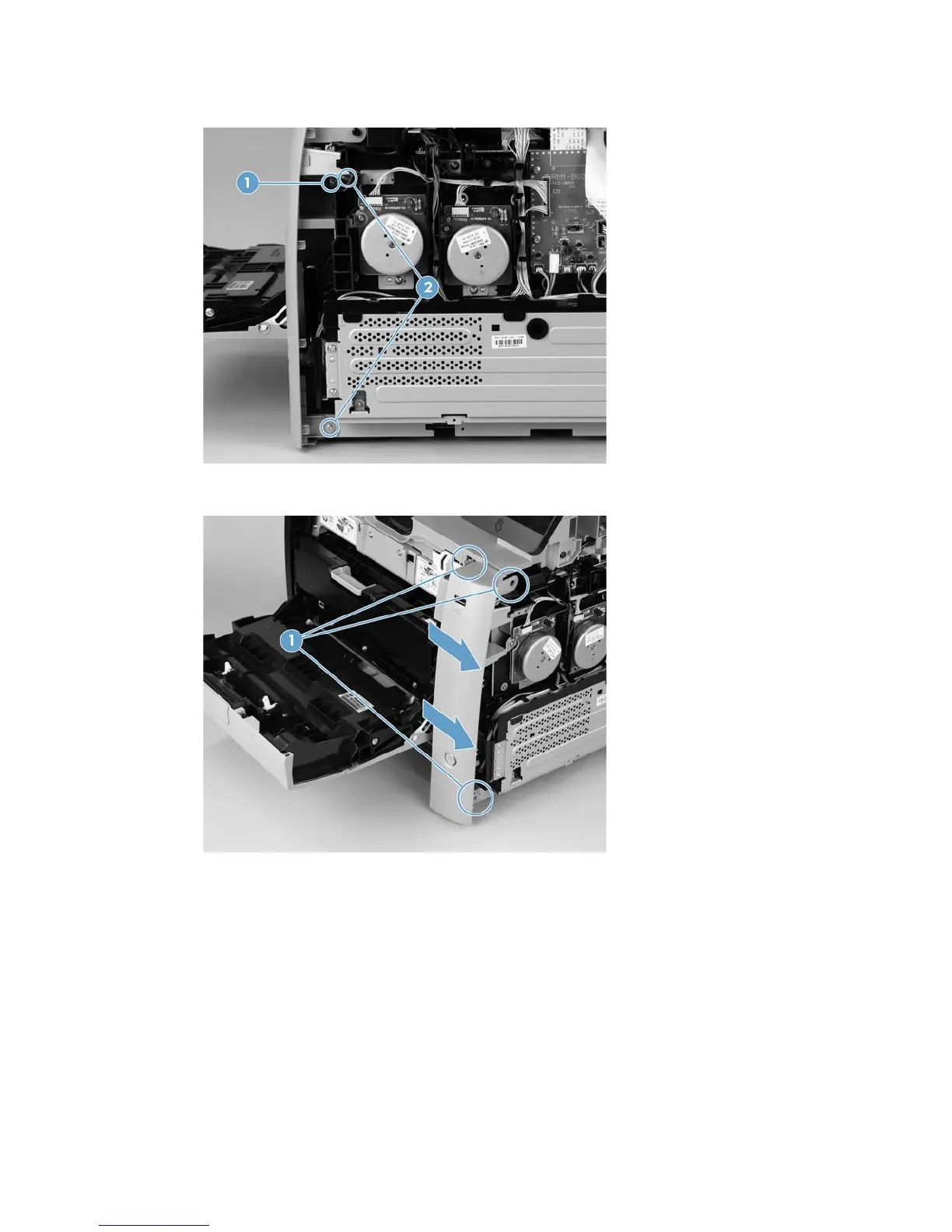

4. Remove one screw and retainer (callout 1), and then remove two screws (callout 2).
5. Slide the cover slightly toward the right to release three tabs (callout 1), and then remove the cover.
ENWW Removal and replacement procedures 27
