Rear-upper cover
1. Open the rear door.
2. Remove two screws (callout 1).

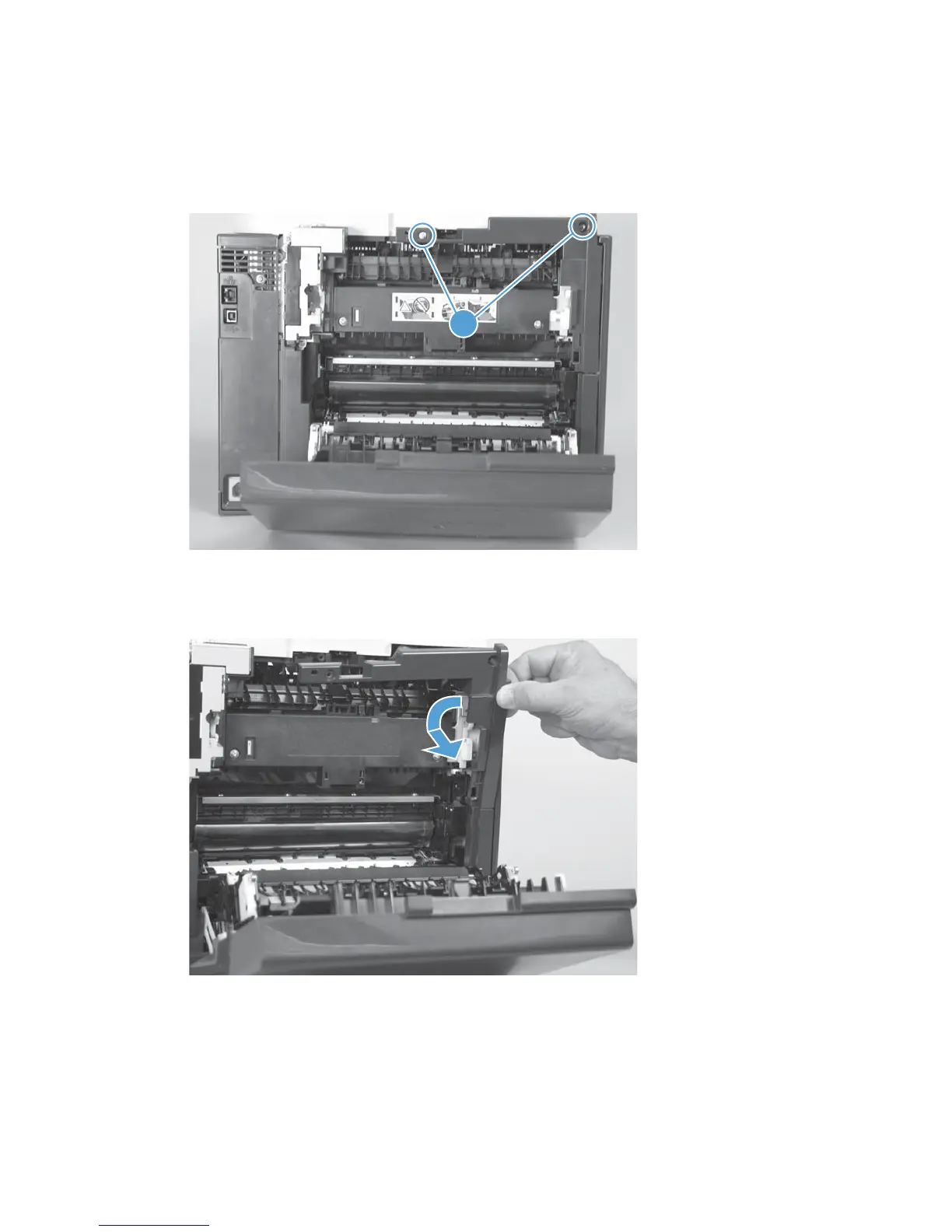

Figure 1-28 Remove the rear-upper cover (1 of 2)
1
3. Slightly separate the cover from the product, and then rotate the cover down and then away from the
product to remove it.
Figure 1-29 Remove the rear-upper cover (2 of 2)
28 Chapter 1 Removal and replacement ENWW
