Control panel and right-arm mount
1. Remove the Right cover. See Right cover on page 25.
2. Remove the wireless PCA.
3. Disconnect two FFCs (callout 2) and two connectors, detach the USB PCA connector in the retainer, then
loosen the ferrite from the control panel mount (callout 1).

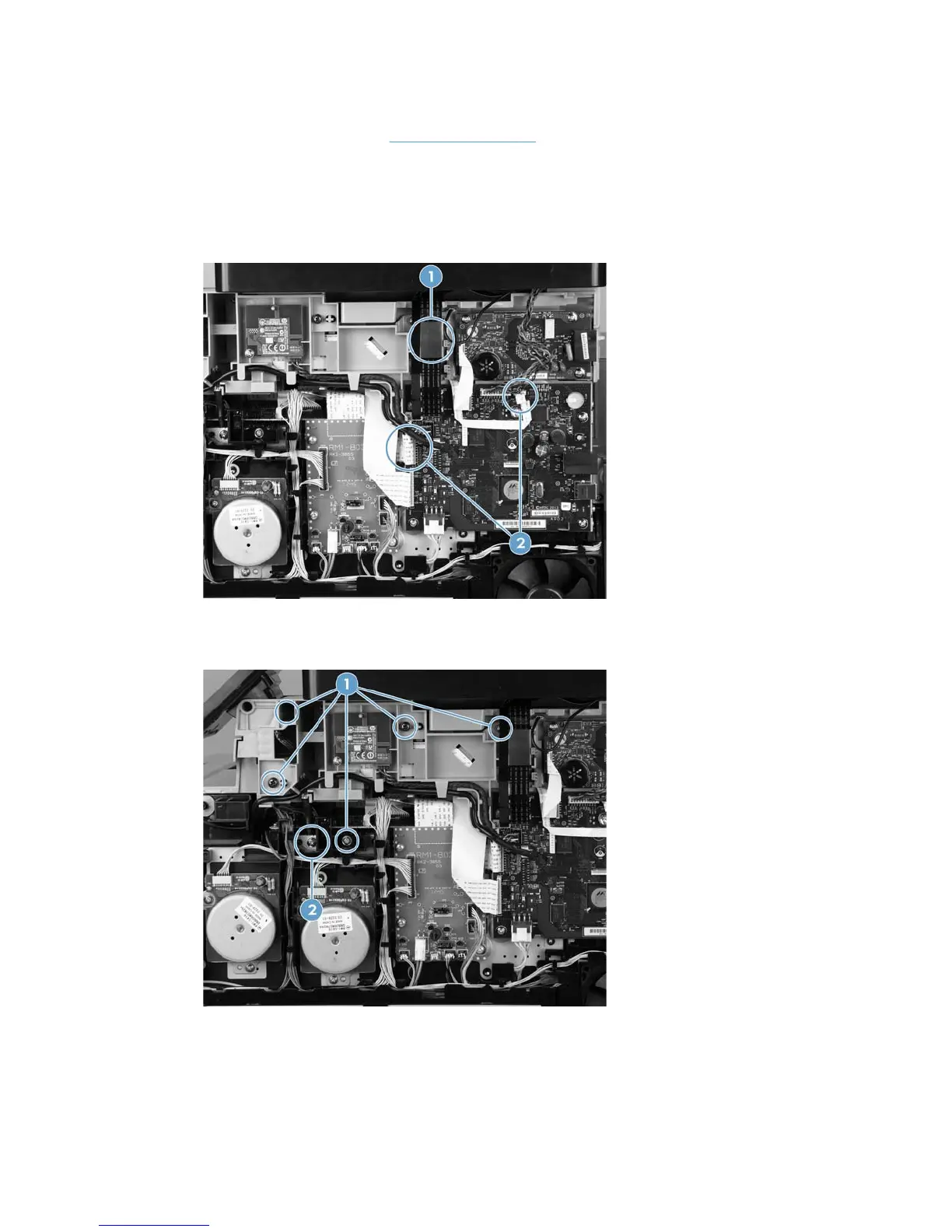

Figure 1-45 Disconnect FFCs and connectors and loosen ferrite
4. Remove four screws (callout 1) and disconnect the ground wire (callout 2).
Figure 1-46 Remove four screws and disconnect the ground wire
ENWW Removal and replacement procedures 39
