Upper-cover assembly
Before proceeding, remove the following components:
●
Right cover. See Right cover on page 25.
●
Scanner assembly. See Scanner assembly on page 17.
●
Rear upper cover. See Rear-upper cover on page 28.
●
Control panel and right-arm mount. See Control panel and right-arm mount on page 39.
●
Right-front cover and power button. See Right-front cover and power button on page 26.

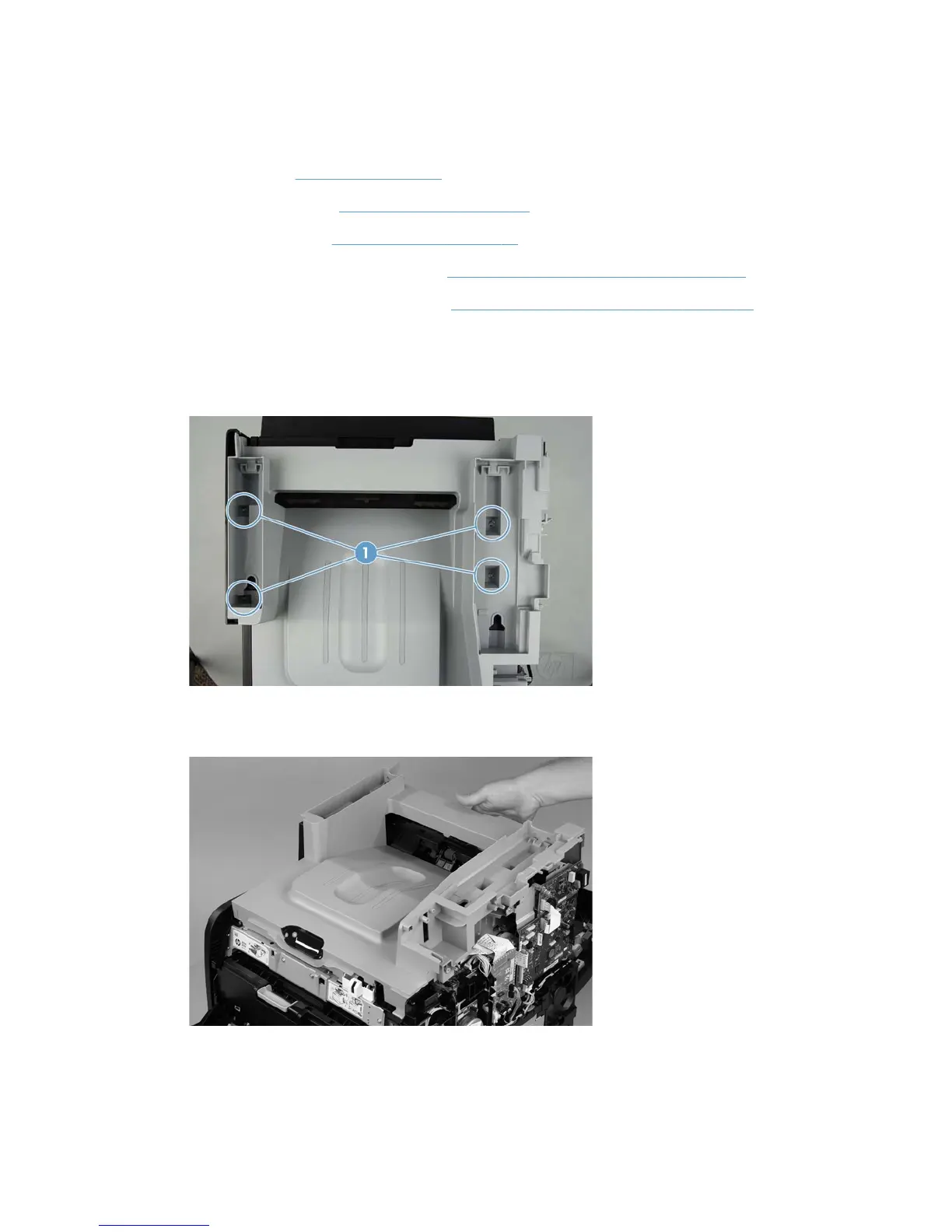

Remove the upper-cover assembly
1. Remove four screws (callout 1).
Figure 1-50 Remove four screws
2. Slightly raise the back of the cover up and off of the product.
Figure 1-51 Raise the back of the cover up and off the product
42 Chapter 1 Removal and replacement ENWW
