3. Slide the cover toward the back of the product to remove it.

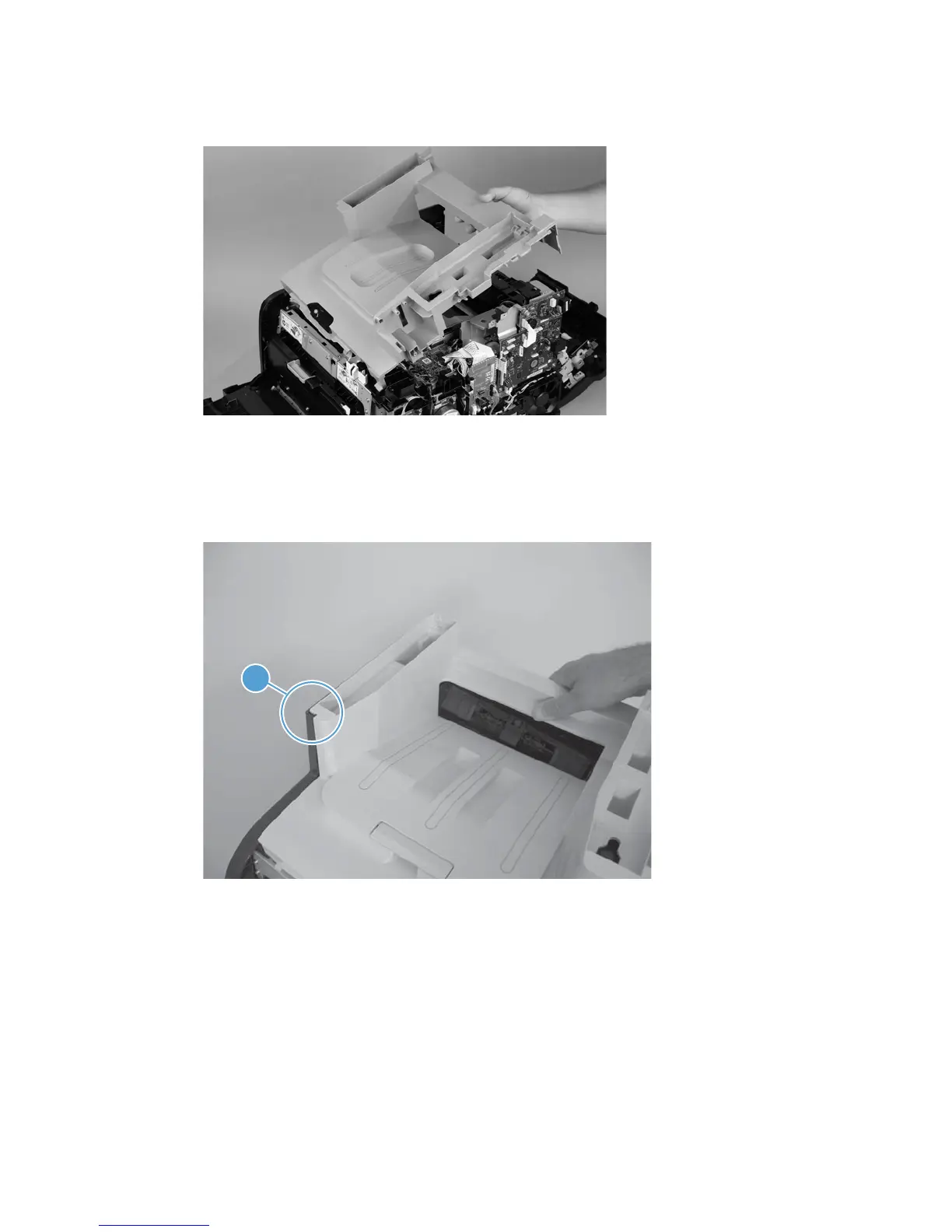

Figure 1-52 Remove the upper-cover assembly
Reinstall the upper-cover assembly
1. Position the upper-cover so that the front-left corner of the upper cover engages the left-side cover
(callout 1).
Figure 1-53 Reinstall the upper-cover assembly (1 of 3)
1
ENWW Removal and replacement procedures 43
