Reinstall the left cover
1. When you reinstall the left cover, make sure that the slot in the cover (callout 1) aligns with the tab
(callout 2) on the product.

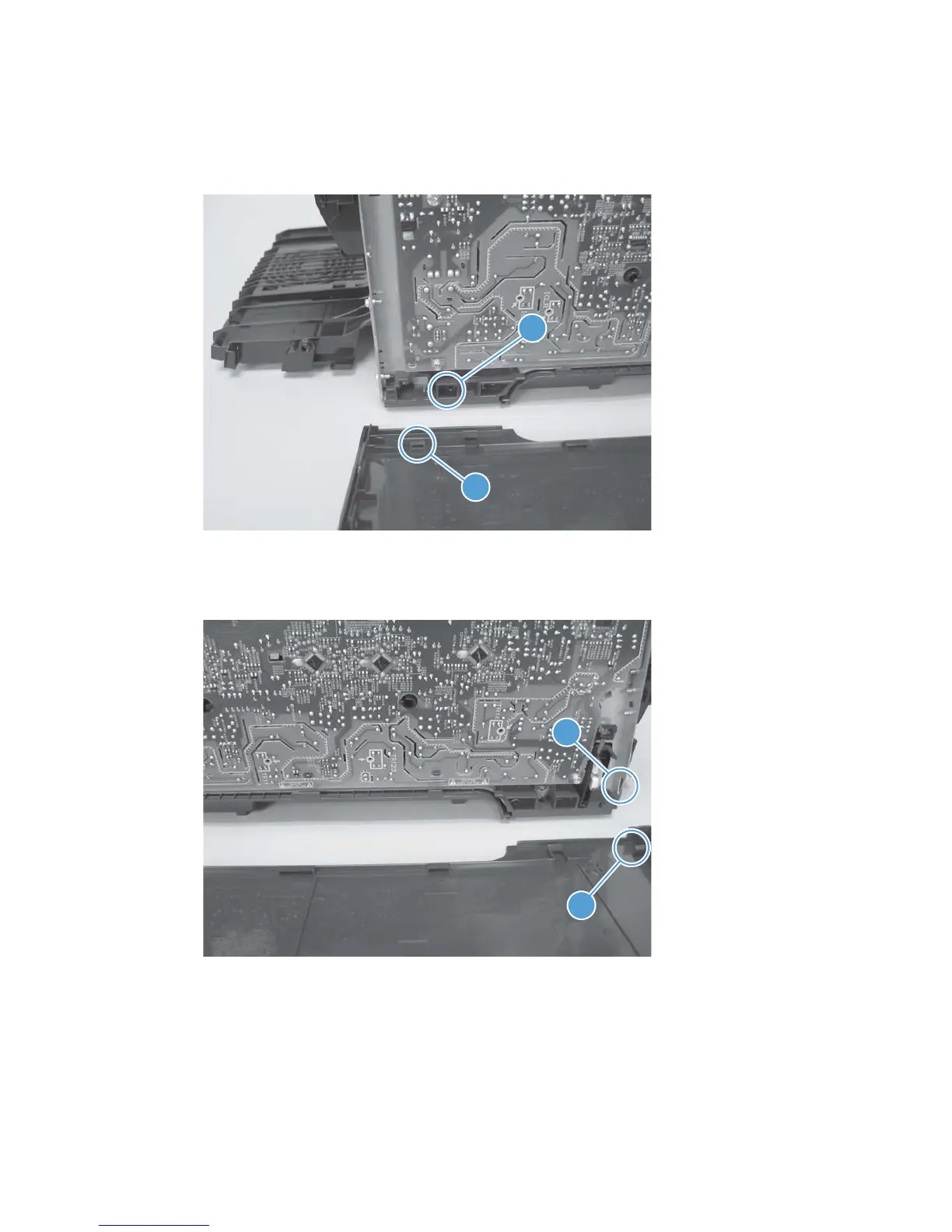

Figure 1-59 Reinstall the left cover (1 of 2)
1
2
2. When you reinstall the left cover, make sure that the pin on the cover (callout 1) aligns with the slot
(callout 2) in the product.
Figure 1-60 Reinstall the left cover (2 of 2)
1
2
