HP LaserJet Pro Color MFP M476dn - Page 64

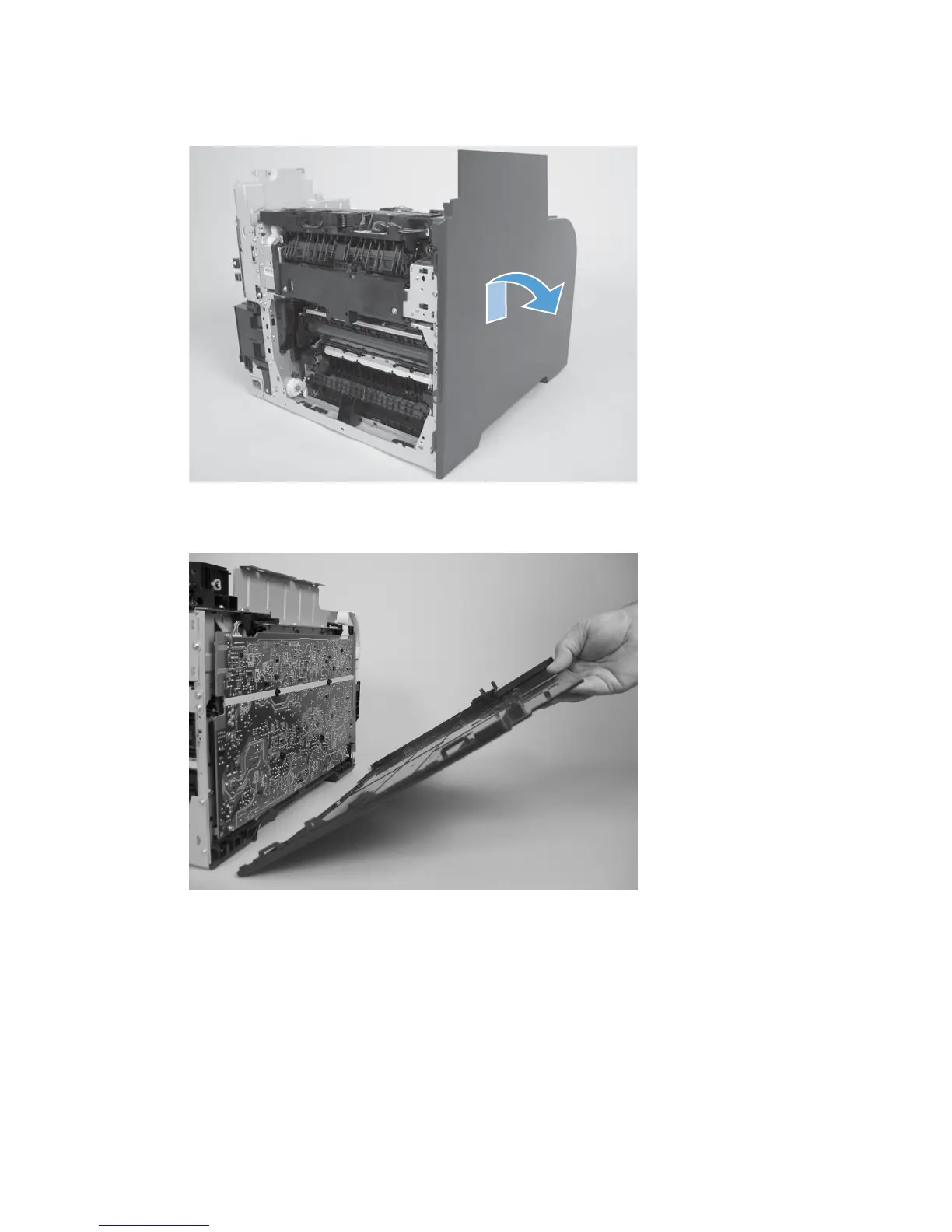

2. Slightly lift up on the cover, and then rotate the top of the cover away from the product.
Figure 1-57 Remove the left cover (2 of 3)
3. Remove the cover.
Figure 1-58 Remove the left cover (3 of 3)
46 Chapter 1 Removal and replacement ENWW
