Left cover
Before proceeding, remove the following components:
●
Right cover. See Right cover on page 25.
●
Scanner assembly. See Scanner assembly on page 17.
●
Rear-lower cover. See Rear-lower cover and rear-door links on page 32.
●
Upper-cover assembly. See Upper-cover assembly on page 42.
Remove the left cover
1. Remove one screw (callout 1).

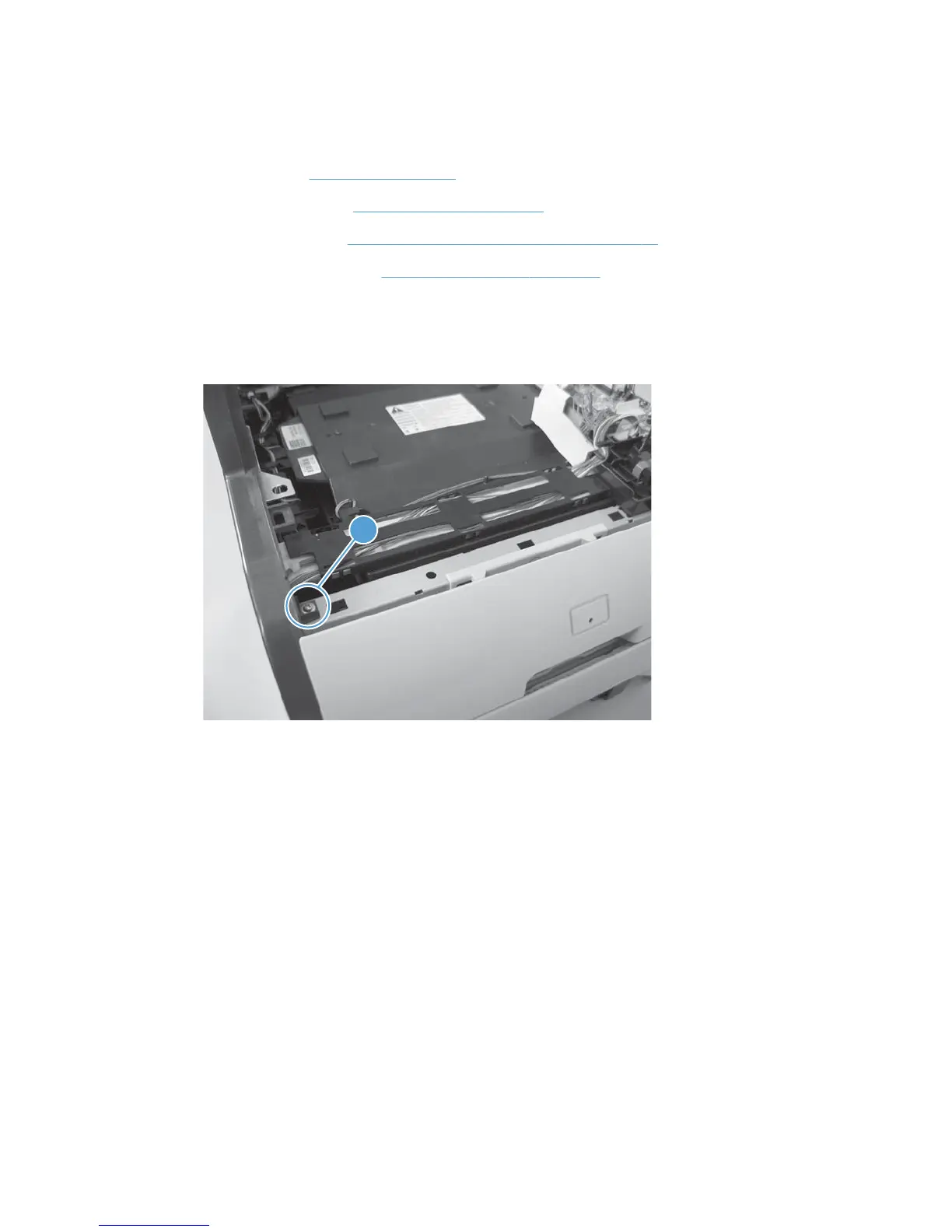

Figure 1-56 Remove the left cover (1 of 3)
