4. Remove two screws (callout 1) and then separate the door bushing (callout 2) from the chassis.

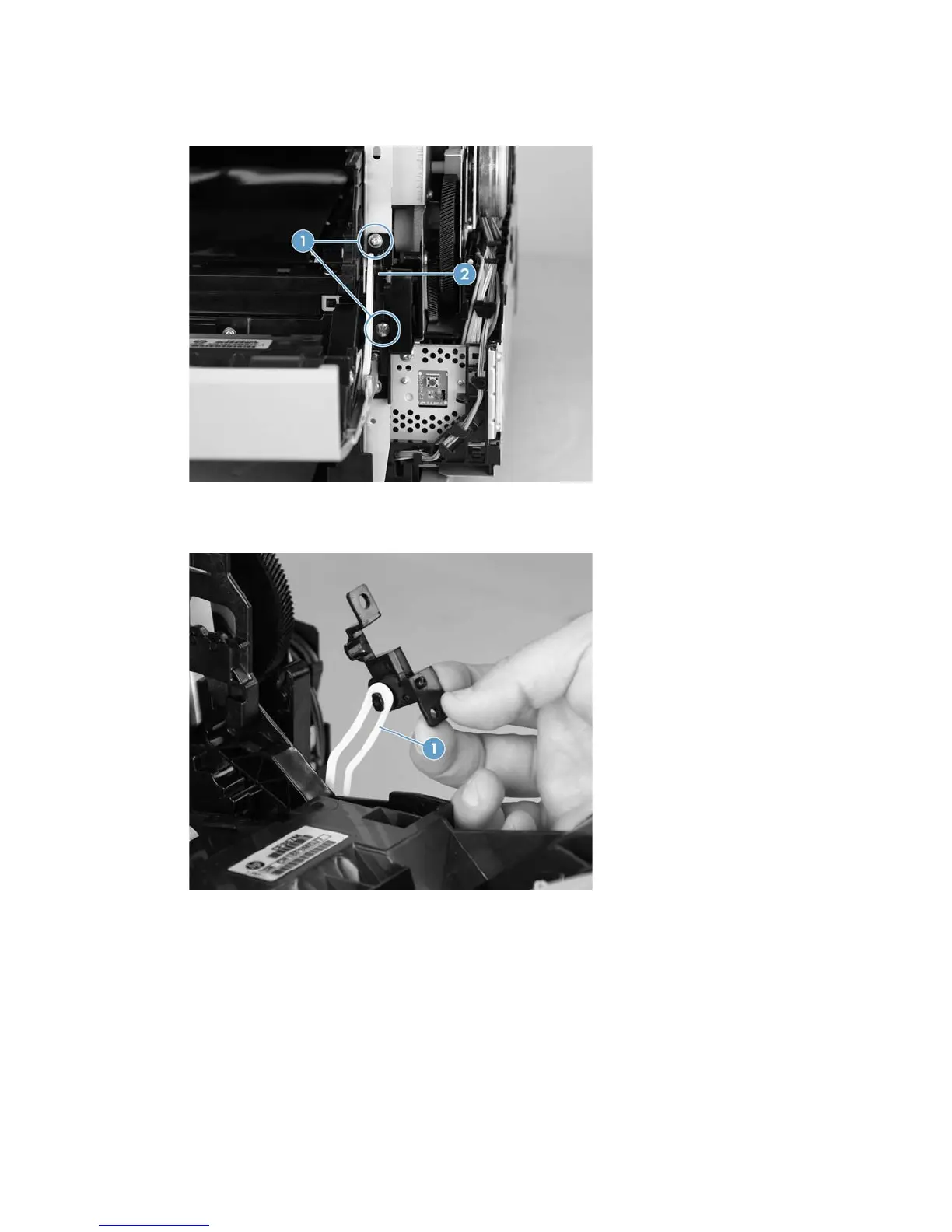

Figure 1-64 Remove the front-door assembly (4 of 10)
5. Release the bushing from the door-retainer link (callout 1).
Figure 1-65 Remove the front-door assembly (5 of 10)
50 Chapter 1 Removal and replacement ENWW
