Internal assemblies
Intermediate transfer belt (ITB)
1. Remove the print-cartridge drawer. See Print-cartridge drawer on page 22.
2. Open the front door, and then remove two screws (callout 1).

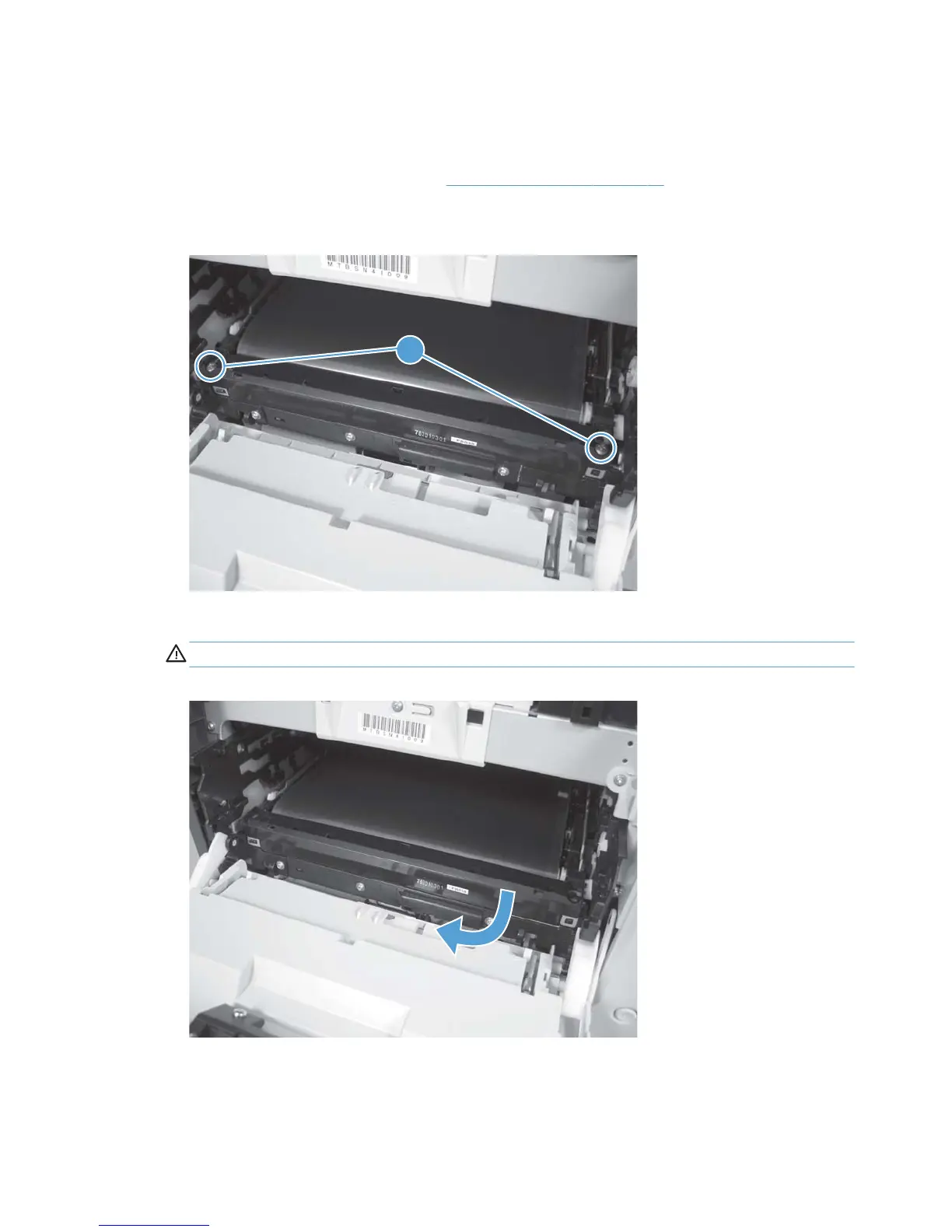

Figure 1-71 Remove the ITB (1 of 6)
1
3. Carefully rotate the color-misregistration sensor away from the ITB.
CAUTION: The sensor is still attached to the product and cannot be completely removed.
Figure 1-72 Remove the ITB (2 of 6)
