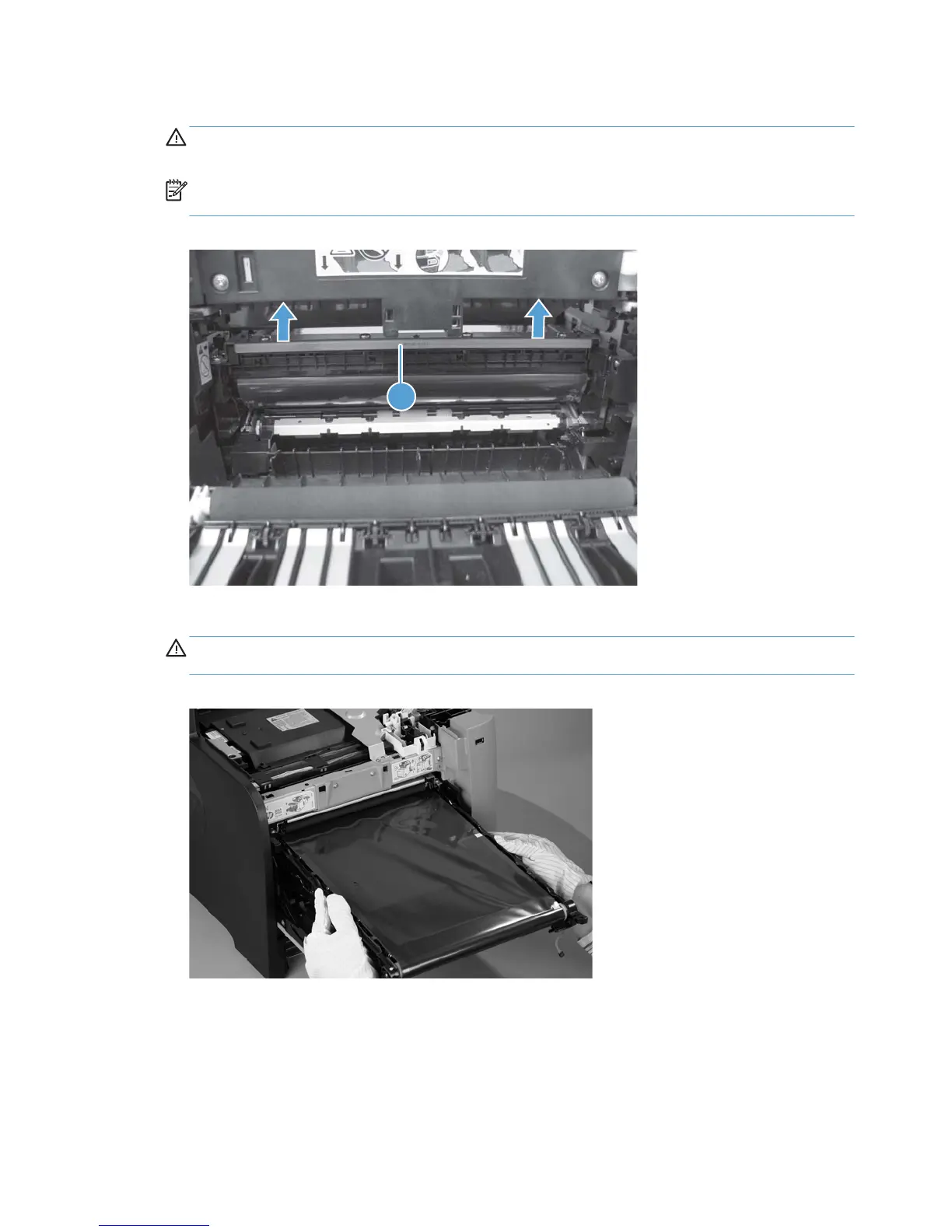

6. Open the rear door, and carefully lift up on the sheet-metal portion (callout 1) of the ITB to release it.
CAUTION: Avoid touching the black plastic transfer belt. Skin oils on the belt might cause print-quality
problems.
NOTE: You might need to reach in through the front door and support the front portion of the ITB to
keep it from falling back into place as you perform this step.
Figure 1-75 Remove the ITB (5 of 6)
7. Carefully pull the ITB straight out of the product to remove it.
CAUTION: Wear gloves when handling the ITB, and avoid touching the black plastic transfer belt. Skin
oils on the belt might cause print-quality problems. Handle the ITB as shown below.
Figure 1-76 Remove the ITB (6 of 6)
56 Chapter 1 Removal and replacement ENWW
