4. Release the wire harnesses from the retainer (callout 1).
NOTE: One of the wire harnesses—behind the drum motor wire harness—is difficult to release from
the retainer. Be careful to not damage this wire harness when releasing it.
TIP: Additional connectors might need to be disconnected to release the wire harnesses from the
retainer.

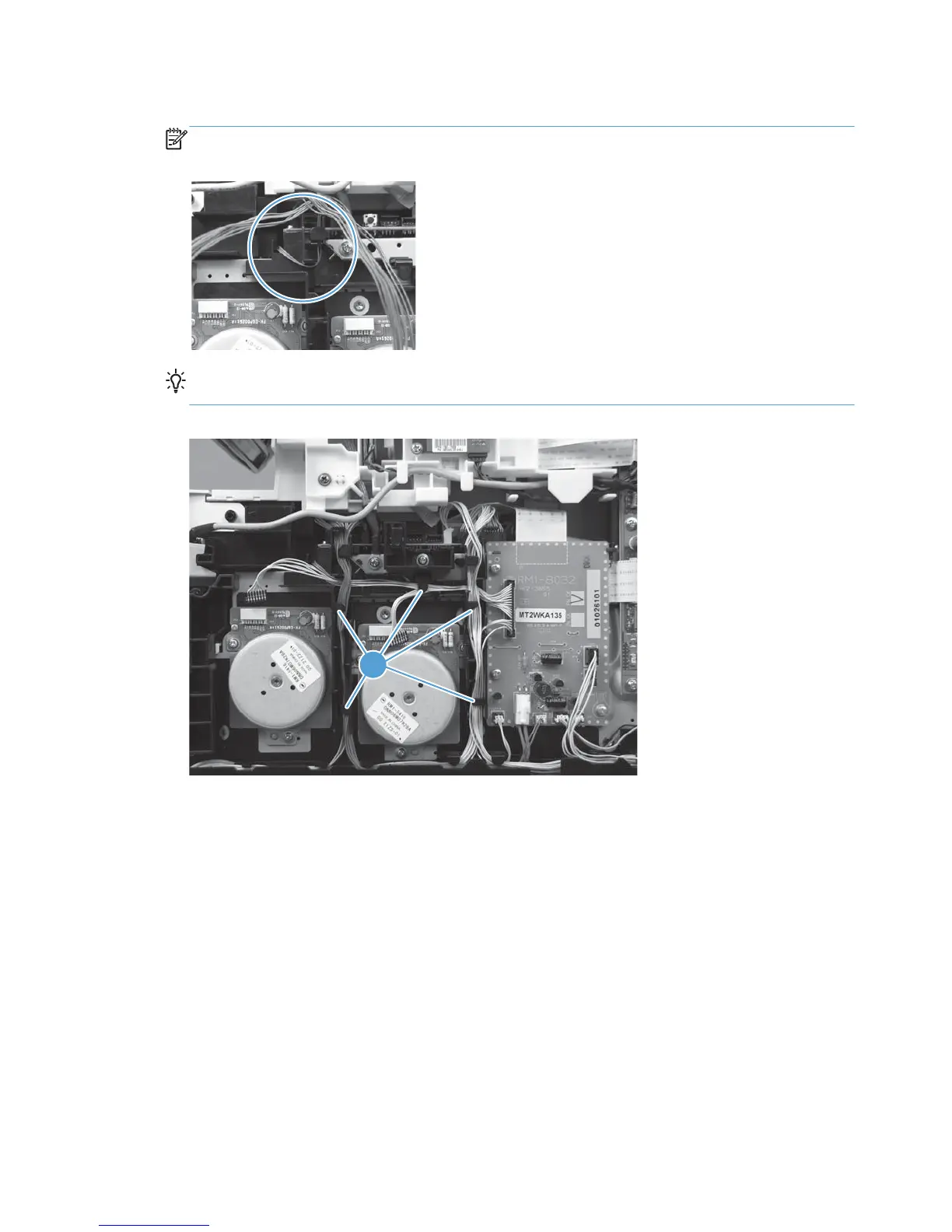

Figure 1-80 Remove motor M1 and motor M2 (3 of 6)
1
